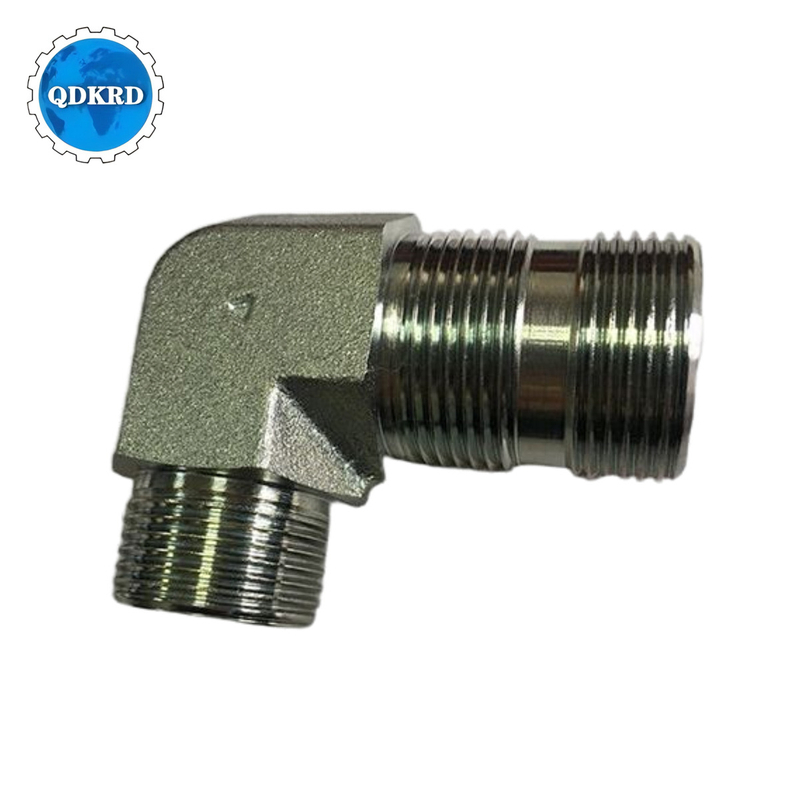

Product Advantage
1. High-Strength Pressure-Resistant Design
Made from premium materials with special heat treatment, these pipe fittings offer excellent pressure resistance to meet the demands of high-pressure hydraulic systems.
2. Superior Sealing Performance
Utilizing multiple metal sealing technologies and multi-layer leak prevention designs, they effectively prevent leaks and ensure long-term stable operation. All threads undergo 100% inspection to reduce maintenance costs.
3. Compatible with Multiple Connection Types
Supports various connection forms including threaded, ferrule, and flange types, allowing quick and easy matching with different equipment. Complete range available in both imperial and metric sizes.
4. Quality Surface Treatment and Easy Installation
Surface treatments like galvanization, electrophoresis, or blackening greatly enhance corrosion and rust resistance, suitable for harsh working conditions. The fittings feature a rational design for easy installation and maintenance, significantly improving project efficiency.
Technical Parameters
| Product Parameters | Content |
| Product Name | Pipe Fitting |
| Application | Construction Machinery Parts |
| Material | 304/316 |
| Surface Treatment | / |
| Weight | 0.2-1KG |
| Tolerance Class | IT:6-10 |
| Minimum Order Quantity | ≥500EA |
| Surface Roughness | RA:0.8-12.5 |
| Processing Technology | CNC |
| Production Volume | Over 1000 Pieces Per Month |
| Casting Method | Precision Die Casting |
| Heat Treatment | Solution Treatment |
| Hardness | HRC18-45 |
| Testing Method | CMM |
Product Uses
Pipe fittings are connection tools between pipelines, serving as detachable joints between components and pipes. They are mainly used for small-diameter, low-pressure pipelines in locations requiring frequent assembly and disassembly or for final adjustments in threaded piping systems.
1. Excavators and Loaders Hydraulic Systems
Used to connect high-pressure cylinders and control valves on parts such as the boom, ensuring stable hydraulic power output. Suitable for high-frequency operation and harsh conditions.
2. Concrete Pump Trucks and Construction Machinery
Applied in pumping systems and hydraulic control pipelines, these fittings withstand high pressure and impact, ensuring continuous and stable operation of concrete delivery equipment.
3. Construction Machinery
Including aerial work platforms and hydraulic formwork equipment, used to connect hydraulic pipelines between power sources and actuators, improving overall machine stability and maintenance efficiency.
4. Drilling Rigs and Foundation Construction Equipment
Suitable for hydraulic connections in pile drivers, rotary drilling rigs, and similar machinery, offering wear and corrosion resistance to endure high-intensity continuous work environments.
Product Operate Guide
1. Before installation, confirm that the pipe fitting specifications (such as thread type, pressure rating, and sealing method) match the hydraulic system and pipeline requirements.
2. Clean the fitting, inner pipe walls, and sealing surfaces before installation to prevent debris or metal shavings from entering, which could affect sealing performance and the lifespan of hydraulic components.
3. Use appropriate tools and tighten fittings to the specified torque to avoid thread stripping or seal failure caused by excessive force.
4. Check that the sealing rings are intact. After installation, conduct a pressure test and inspect all connections for leaks. If any looseness or abnormalities are found, stop the equipment immediately for adjustment.
5. During equipment operation, regularly inspect fittings for looseness, wear, or oil leaks, and tighten or replace as necessary.
Product Video
FAQ
1.Q: Do you offer customized pipe fittings?
A: Yes, we support OEM/ODM customization. Please provide detailed drawings, and we can manufacture according to specific material, size, weight, surface treatment, and other requirements.
2.Q: How is the pressure resistance and sealing performance of your fittings?
A: Our fittings comply with international standards such as ISO and DIN. They can withstand working pressures over 40MPa, with sealing designs including tapered surfaces, O-rings, and metal seals to ensure leak-free operation.
3.Q: What equipment are your pipe fittings suitable for?
A: Our fittings are widely used in excavators, loaders, concrete pump trucks, pile drivers, drilling rigs, and various other construction and engineering machinery, especially for high-pressure hydraulic system connections.
4.Q: What quality certifications do your products have?
A: Our pipe fittings meet international standards and can be supplied with quality inspection reports upon request, including dimensional inspection and air tightness testing, to ensure compliance with quality requirements.
