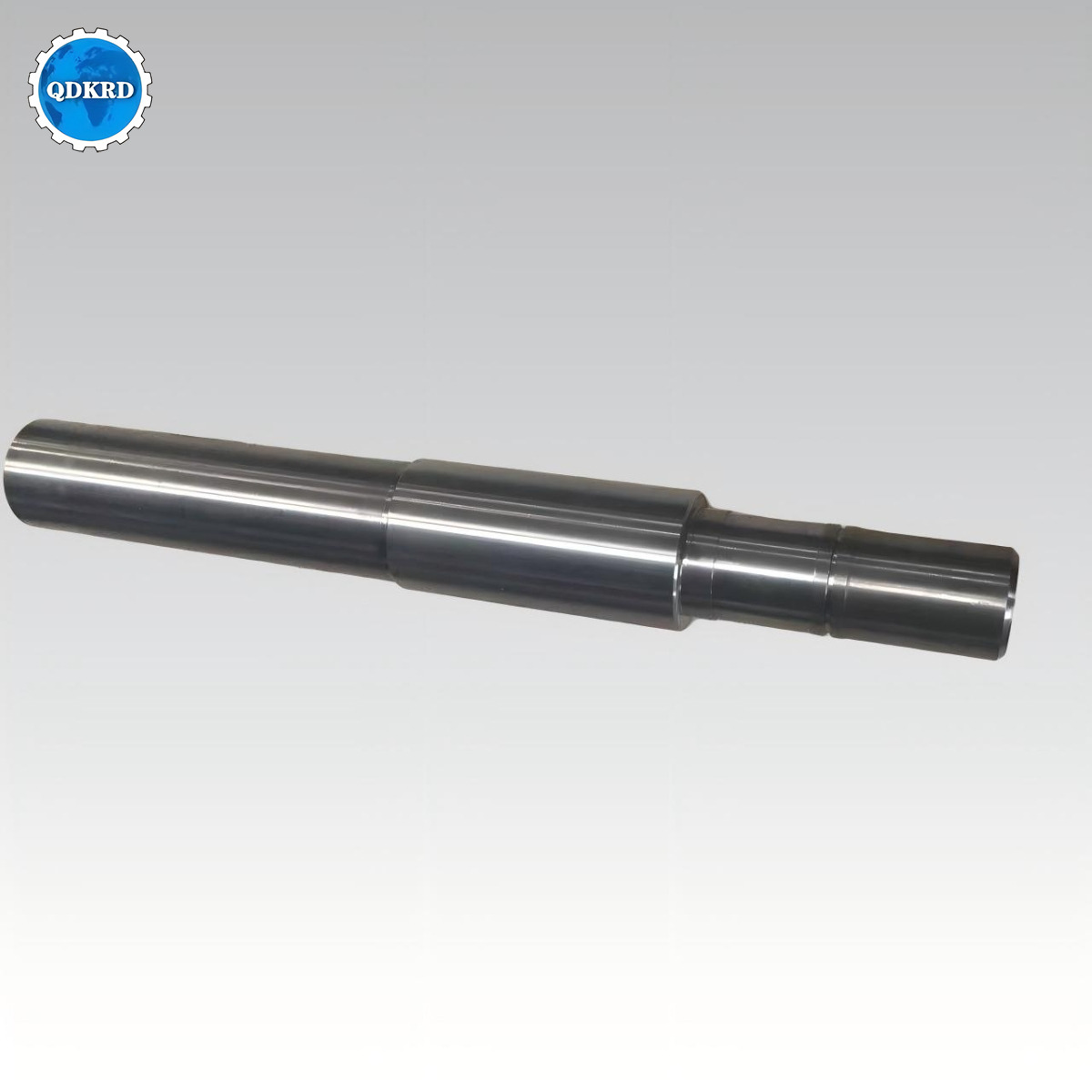

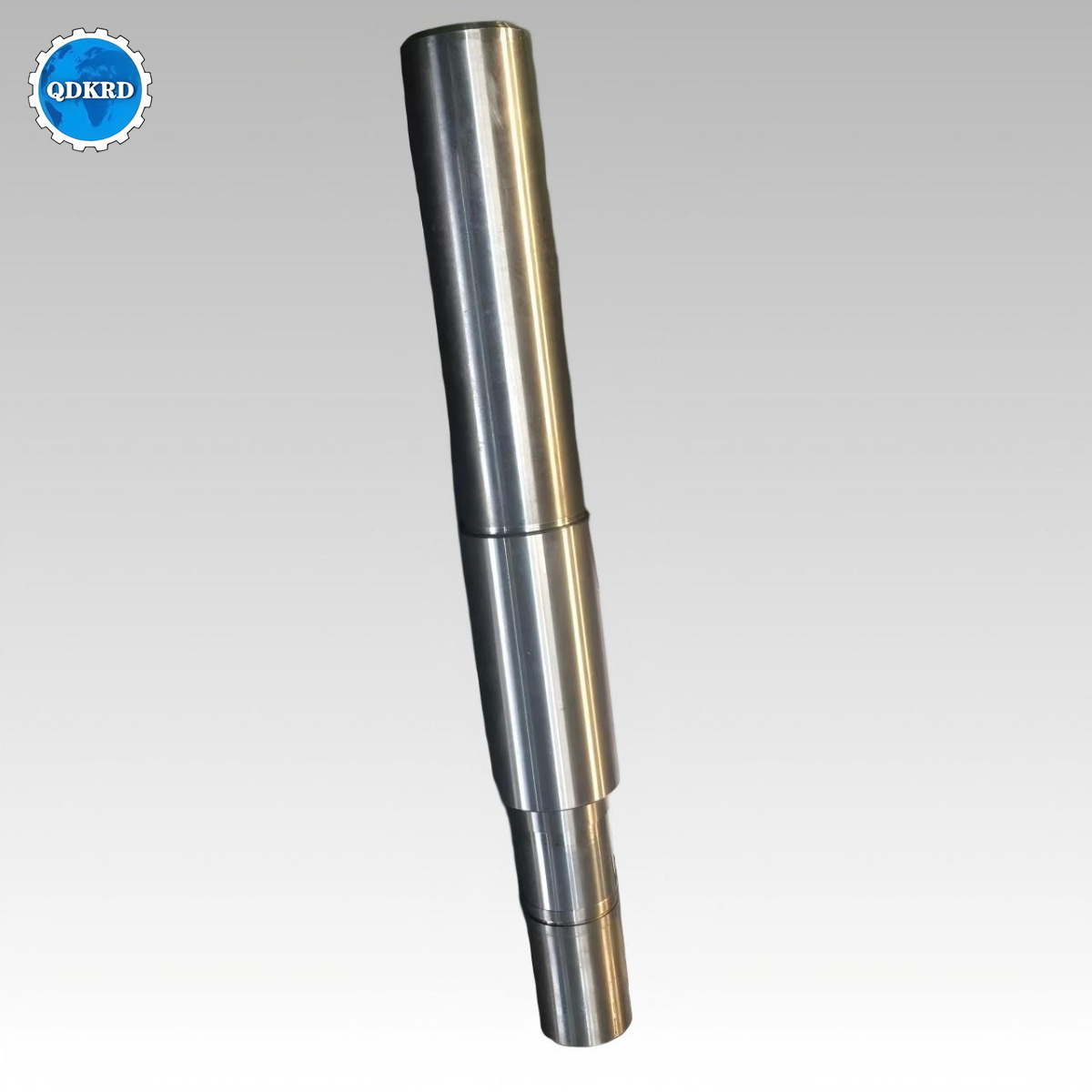

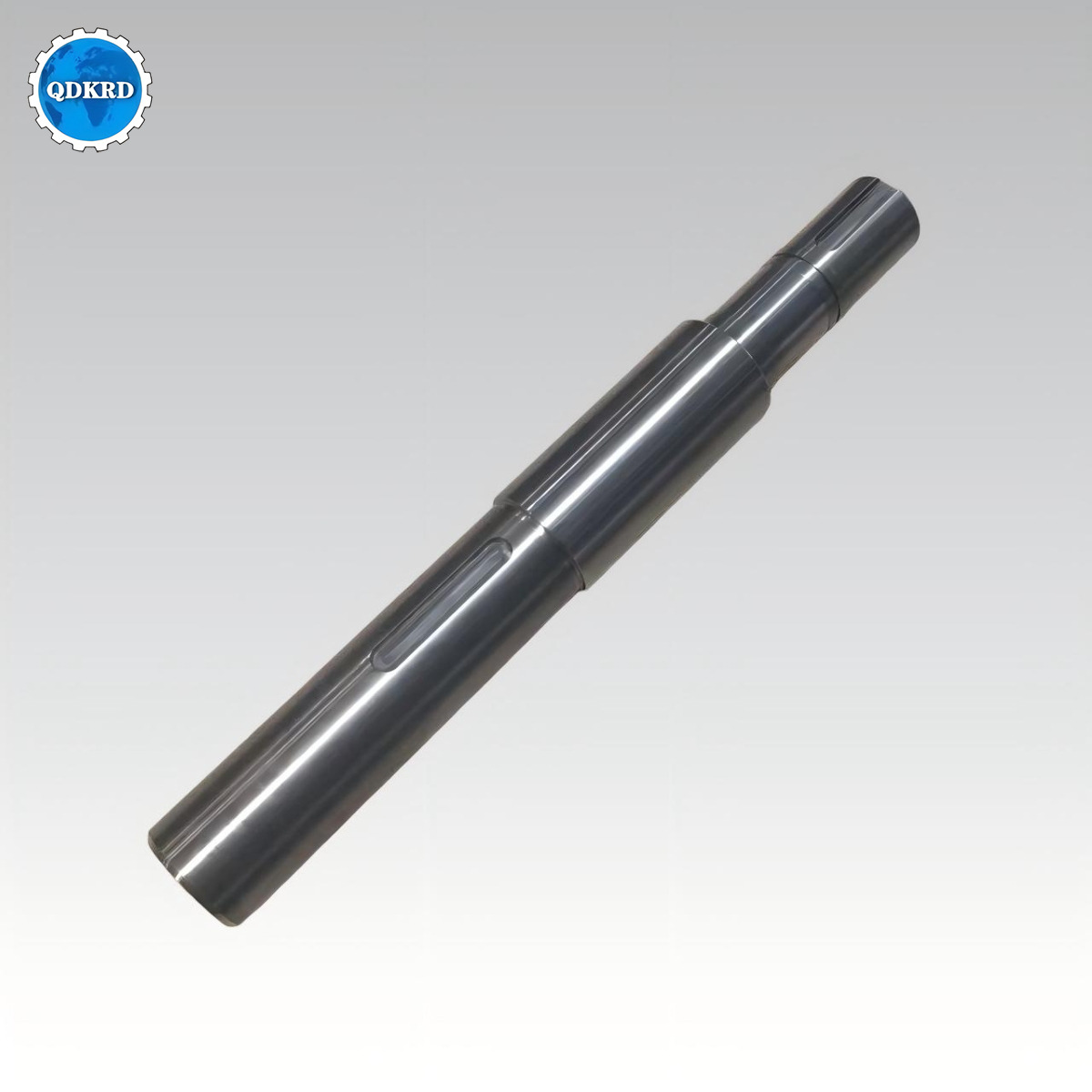

Operating heavy-duty extraction and grinding machinery requires components engineered for absolute reliability. Our machined shafts for mineral processing equipment are manufactured using advanced CNC turning and milling technology, ensuring exceptional dimensional accuracy and concentricity. By achieving tolerances as precise as ±0.01 mm, these components guarantee stable rotation and significantly reduce vibration in industrial grinding machines. This precision manufacturing directly translates to seamless OEM interchangeability. Maintenance teams can rely on exact fitment and functional equivalence with original equipment, effectively eliminating the need for costly field modifications or rework during critical replacement procedures.
Beyond immediate operational improvements, our manufacturing approach focuses heavily on total cost of ownership optimization. By balancing premium material selection with high-precision machining processes, we provide a solution that delivers the lowest lifecycle cost rather than merely the lowest initial purchase price. This strategic focus ensures that your mineral grinding machines and mining equipment maintain consistent, efficient production over extended operational periods.
Ensuring the structural reliability required to prevent catastrophic failure under high-torque loads begins with uncompromising material integrity and traceability. Before reviewing the specific dimensional and processing parameters below, it is important to note that every production batch is backed by rigorous quality verification protocols. We provide full material certification and chemical composition analysis for all stainless steel and alloy grades utilized. Furthermore, comprehensive documentation including coordinate measuring machine inspection reports, non-destructive testing results, and hardness testing records are maintained to guarantee strict compliance with international engineering standards. This meticulous approach to quality assurance ensures that every machined shaft delivered will perform predictably under the severe mechanical stresses typical of industrial drive systems and servo motor applications.
| Product Parameters | Content |
| Product Name | Shaft |
| Application | Electric Motor, Servo Motor, Industrial Drive Systems |
| Material | Stainless Steel (304 / 316 / Other Grades Available) |
| Surface Treatment | Machined Finish / Polished / Passivation |
| Weight | Customized According To Drawing |
| Tolerance Class | ±0.01 mm (Custom Tolerances Available) |
| Minimum Order Quantity | 1 piece |
| Surface Roughness | Ra:0.8–3.2 μm |
| Processing Technology | CNC Turning And Milling |
| Production Volume | Prototype To Mass Production |
| Heat Treatment | Quenching and Tempering |
| Hardness | According To Material Grade |
| Testing Method | Dimensional Inspection, Runout Test, Visual Inspection, CMM |
The machined shaft is a critical rotational component widely utilized across various sectors of mineral processing equipment. It is predominantly integrated into industrial grinding machines designed for intensive ore crushing and grinding operations. Facilities such as large-scale mining plants, cement production lines, and mineral beneficiation systems rely on these robust shafts to transmit immense torque and support heavy rotating assemblies. Operating under continuous rotation, high impact loads, and highly abrasive working conditions, the shaft must maintain unwavering structural stability to ensure the uninterrupted performance of grinding mills.
Because these industrial applications are frequently located in remote or challenging geographical areas, we have implemented industrial-grade logistics and protection protocols. Each precision-machined shaft is secured using specialized anti-corrosion packaging and rugged crating solutions. This careful preparation is specifically designed to protect the critical machined surfaces and tight tolerances during long-distance overland transport or international maritime shipping. Consequently, the components arrive at the installation site in pristine condition, ready for immediate integration into your processing equipment.
Q1: What materials are available for the machined shaft?
The machined shaft can be manufactured from various grades of carbon steel, alloy steel, or stainless steel based on your specific application requirements. Material selection is carefully evaluated depending on the anticipated load conditions, required wear resistance, and the corrosiveness of the operating environment. We provide full material traceability and can recommend the most suitable metallurgical composition for your mineral processing equipment to ensure reliable performance and a prolonged service life under severe stress.
Q2: Can the shaft be customized according to our drawings?
Yes, we provide comprehensive custom machining services tailored to your exact specifications. The shaft can be produced according to customer drawings, physical samples, or detailed technical requirements. Key parameters such as precise dimensions, tight tolerances, specific heat treatment processes, and surface finishes are customized to match your equipment needs. Our engineering team can also collaborate with you to refine these designs, ensuring seamless functional interchangeability with your existing original equipment.
Q3: What quality control measures are applied during manufacturing?
Each machined shaft undergoes a stringent series of quality verification protocols. This includes precise dimensional measurement, concentricity and runout checking, and thorough surface quality control. Heat-treated components are systematically tested for hardness to ensure strict compliance with engineering specifications. Additionally, we utilize advanced inspection methods to confirm structural integrity, ensuring consistent quality and stable performance in demanding mineral grinding and mining applications.
Q4: What is the typical lead time for production and delivery?
Production lead time depends on the complexity of the design, the specific material availability, and the total order quantity. For standard customized orders, the manufacturing process typically requires three to five weeks. We meticulously plan our production schedules and confirm the delivery timeline prior to order confirmation. This transparency supports your facility project planning and critical equipment maintenance turnarounds, helping to minimize operational downtime.
