1. Ultra-high Precision Machining & Dimensional Accuracy

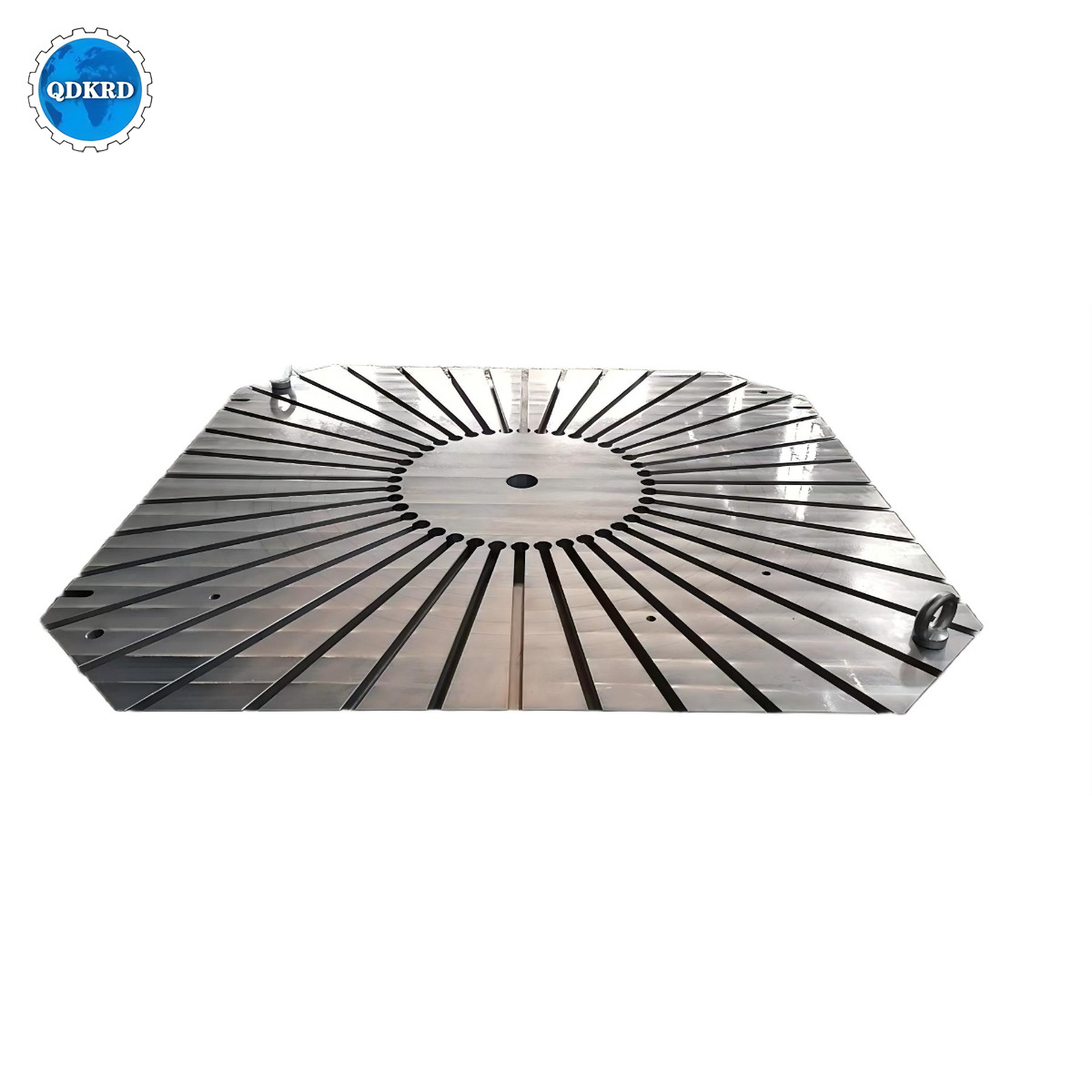

Our radial table faceplate is finished by high-precision CNC machining, with flatness tolerance controlled within 0.02mm and concentricity error ≤0.015mm. Every size parameter is calibrated by professional testing equipment, ensuring perfect fit with your equipment and stable operation in high-precision industrial scenarios without deviation.
2. Heavy-duty High-strength Material & Stable Load-bearing
Adopting high-quality carbon structural steel with 180-240HBW hardness, the faceplate is integrally quenched and tempered. The solid one-piece structure can bear a maximum static load of 500kg, with excellent fatigue and impact resistance, meeting the long-term heavy-load use needs of industrial production without structural deformation.
3. Fine CNC finishing & Super Smooth Surface
The key contact and installation surfaces of the faceplate are processed by fine CNC finishing and grinding, with surface roughness Ra≤1.6μm. The ultra-smooth surface effectively reduces friction and wear during operation, extends the service life of matching parts, and avoids scratch damage to equipment during installation and use.
4. Customizable Specifications & One-stop Machining Service
We support full-custom custom machining of the faceplate, including size, aperture, mounting hole position and surface treatment according to your drawings or samples. No additional secondary processing is needed for the finished product, realizing one-stop matching of your customized needs and greatly improving your assembly and production efficiency.
5. Excellent Anti-wear & Corrosion Resistance Coating
After all machining processes, the faceplate is coated with a professional anti-rust and anti-wear coating with a thickness of 80-100μm. It can effectively resist industrial oil pollution, dust and mild chemical corrosion, keep the surface finish and structural stability for a long time, and reduce your later maintenance cost and frequency.
| Product Parameters | Content |
| Product Name | CNC Machine Parts |
| Application | Lathe equipment |
| Material | Q355B / 42CrMo Steel |
| Surface Treatment | Precision Grind + Anti-Rust Coating |
| Weight | 500–3000kg |
| Tolerance Class | ±0.01 mm (Custom Tolerances Available) |
| Minimum Order Quantity | 1 piece |
| Surface Roughness | Ra≤1.6μm |
| Processing Technology | CNC Milling, Gantry Machining |
| Production Volume | Prototype To Mass Production |
| Heat Treatment | Quenching and Tempering |
| Hardness | According To Material Grade |
| Testing Method | Dimensional Inspection, Runout Test, Visual Inspection, CMM |
1. CNC Rotary Table Matching
Serves as a stable base for precision CNC rotary tables, enabling accurate positioning in high-speed machining of complex mechanical parts.
2. Heavy-Duty Machine Tool Workbench
Acts as the core workbench for large machine tools, bearing heavy workpieces in metallurgical and energy equipment manufacturing.
3. Large Fixture MountingProvides a precise foundation for custom heavy fixtures, realizing firm clamping of oversized industrial parts during processing.
4. High-Precision Inspection PlatformApplied in quality control labs, for flatness and concentricity detection of large-scale finished mechanical parts.
5. Wind Power & Aerospace Part Processing
Supports high-precision machining positioning of large components in wind power, aerospace and other heavy industries.
1. Clean the mounting surface and faceplate contact area without debris.
2. Align the faceplate with the equipment base and fix it with high-strength bolts.
3. Calibrate flatness and concentricity before use to ensure precision.
4. Avoid overloading during operation; clean and maintain the surface regularly after use.
1. Q: What materials can the faceplate be customized with?
It can be customized with Q355B, 42CrMo steel or ductile iron per your working conditions. All materials go through heat treatment to ensure structural strength and hardness meet industrial use requirements.
2. Q: Is sample customization supported for the faceplate?
Yes, sample customization is available with a MOQ of 1 piece. We can produce per your drawings or samples, and the sample delivery time is about 7-10 working days.
3. What is the tolerance standard of the faceplate's key surface?
Critical dimensions adopt ISO 4 grade precision tolerance, flatness ≤0.03mm, concentricity ≤0.02mm, fully meeting industrial equipment's high-precision machining and positioning needs.
4. How to maintain the faceplate for long-term use?
Wipe the surface with a dry cloth after use to remove debris and oil. Apply anti-rust oil to the contact surface regularly, and avoid violent collision and overloading to prevent deformation.
