Product Advantage
1. Direct Supply from a Professional Die-Casting Manufacturer
With over 10 years of experience in precision frame manufacturing, we specialize in high-performance aluminum structures. Our expertise ensures photovoltaic cutting equipment with outstanding strength, stability, and reliability.
2. High-Strength Aluminum Profile Construction
Made from industrial-grade aluminum profiles, combining lightweight design with high rigidity to meet the demanding stability requirements of high-speed, high-precision cutting environments.
3. Precision Profile Machining
Advanced CNC machining guarantees flat surfaces and accurate connections, greatly reducing assembly errors and enhancing overall structural integrity.
4. Durable Anodized Surface Treatment
All frames undergo high-quality anodizing to improve surface hardness and corrosion resistance. The matte finish is also compatible with cleanroom environments.
5. Modular and Customizable Design
Flexible structure supports modular assembly and custom dimensions. Whether for standard PV cutting lines or specialized equipment, we meet diverse customer needs.
6. Reliable OEM/ODM Partner
As a manufacturer integrating die-casting and profile machining, we provide global PV and automation clients with consistent quality, fast delivery, and strong technical support.
Technical Parameters
| Product Parameters | Content |

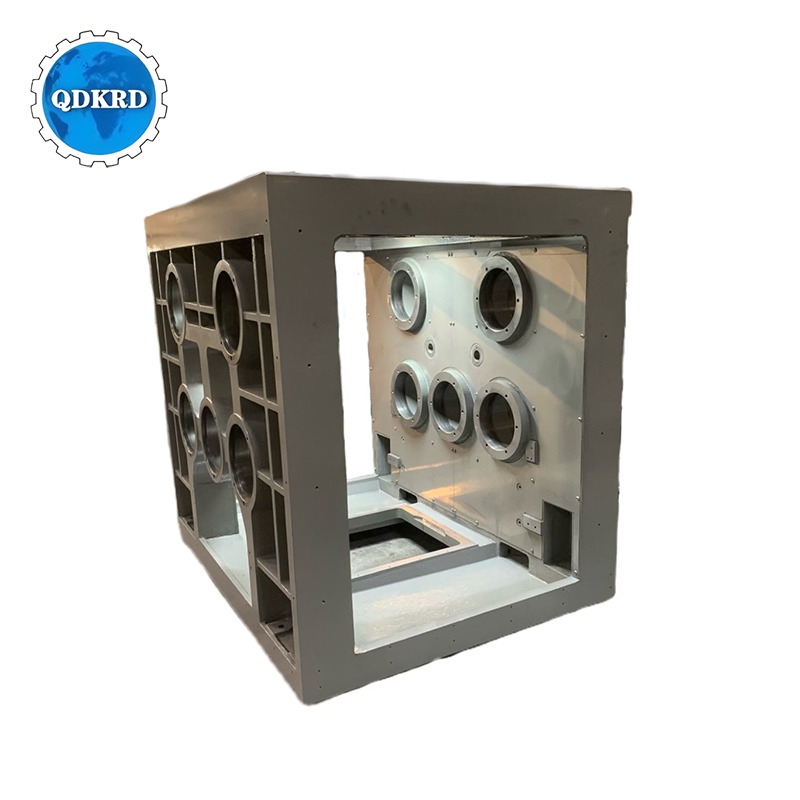

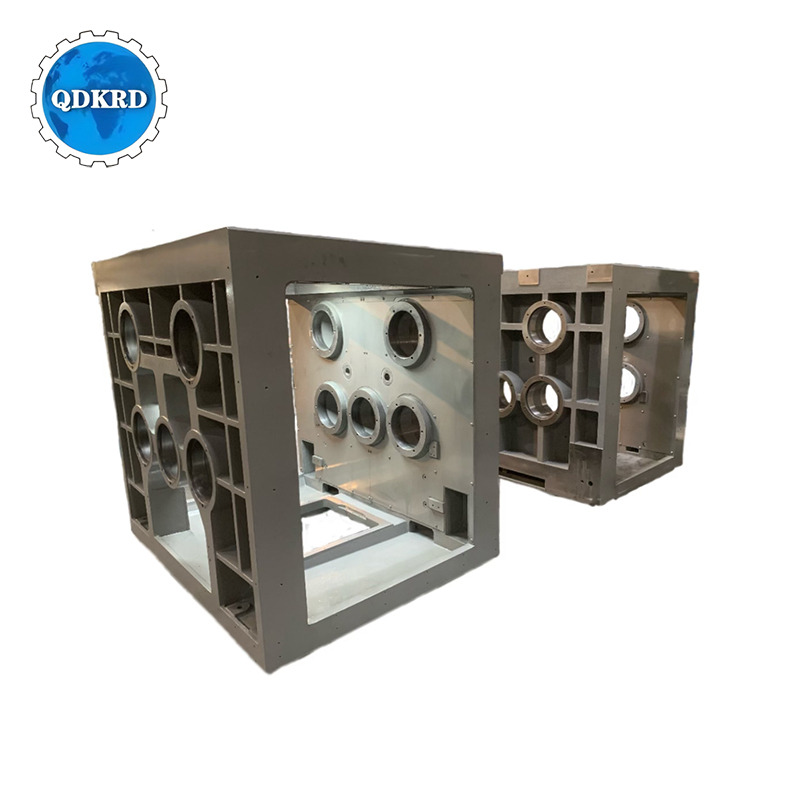

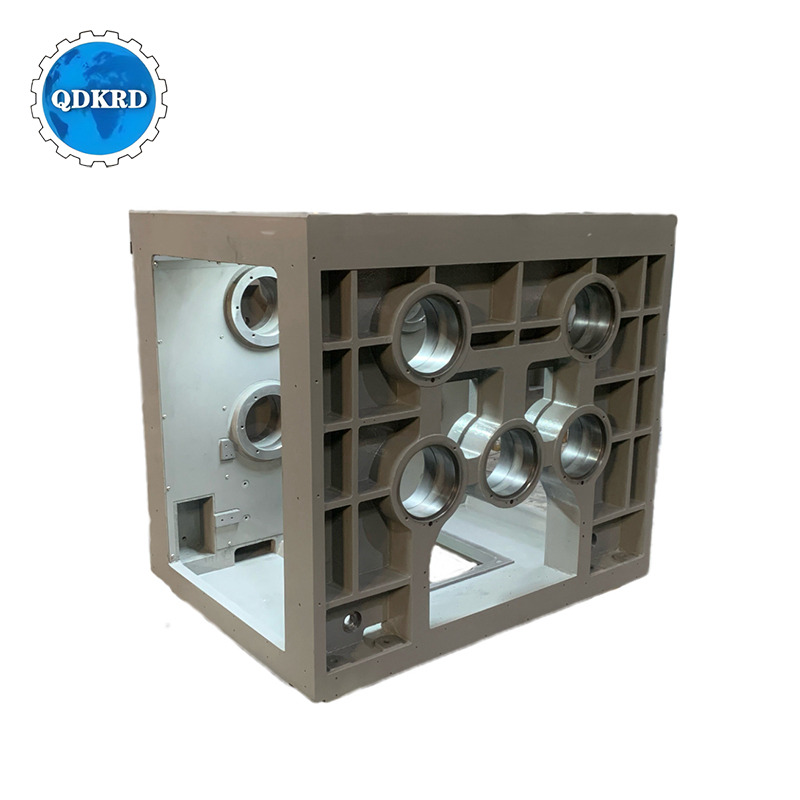

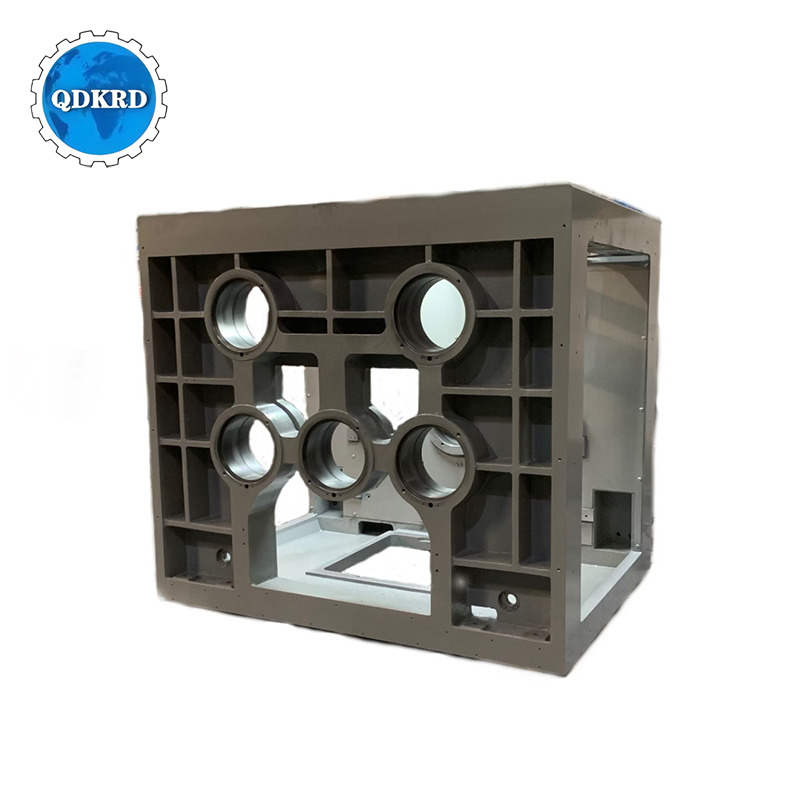

| Product Name | Machine Frame |
| Application | Photovoltaic Industry |
| Material | HT250 |
| Surface Treatment | Painting |
| Weight | 2000-4000KG |
| Tolerance Class | IT:6-10 |
| Minimum Order Quantity | ≥2EA |
| Surface Roughness | RA:0.8-12.5 |
| Processing Technology | CNC |
| Production Volume | Over 40 Pieces Per Month |
| Casting Method | Lost Foam Casting |
| Heat Treatment | Stress Relief Annealing |
| Hardness | HB250 |
| Testing Method | CMM |
Product Uses
1. Solar Cell Cutting Line
Serves as the structural base for laser or wire cutting equipment. Offers high flatness and rigidity to ensure precise cutting of delicate solar cells.
2. Silicon Wafer Processing Lines
Used in sections like wafer loading, unloading, and cleaning. The frame must resist vibration and corrosion, especially in wet processing environments.
3. Cleanroom Applications
Anodized surfaces prevent oxidation and particle generation, making the frame ideal for use in high-cleanliness PV production areas.
4. Equipment Integration Platforms
Supports various machine modules or guide rails. Highly expandable structure design ensures easy integration with automation systems.
5. R&D and Pilot Production Lines
Suitable for lab-scale or small-batch testing systems. Modular structure allows fast design modifications and sample assembly.
Product Operate Guide
Before assembly, inspect all profile connections for damage or deformation. Assemble the frame according to the drawing and tighten joints. Use a level to confirm structural accuracy. Once completed, conduct a static load test to ensure strength and stability before installing cutting equipment.
Product Video
FAQ
1. Q: What type of aluminum profiles do you use?
A: We use industrial-grade aluminum profiles with customizable specifications, ensuring strength and precision for PV machinery.
2. Q: Do you offer customized frame machining?
A: Yes, we support custom frame processing based on your drawings, including structure, mounting interfaces, and surface finish.
3. Q: Can I choose the anodizing color?
A: Yes, common colors include silver, black, and dark gray to match the machine’s design or factory color coding.
4. Q: What is the typical lead time?
A: Standard orders ship within 7–10 days; custom frames depend on complexity but are typically delivered within 15 days.
5. Q: Can you provide material and quality reports?
A: Yes, we can supply raw material certificates, anodizing reports, and dimensional inspection records for traceable quality assurance.
