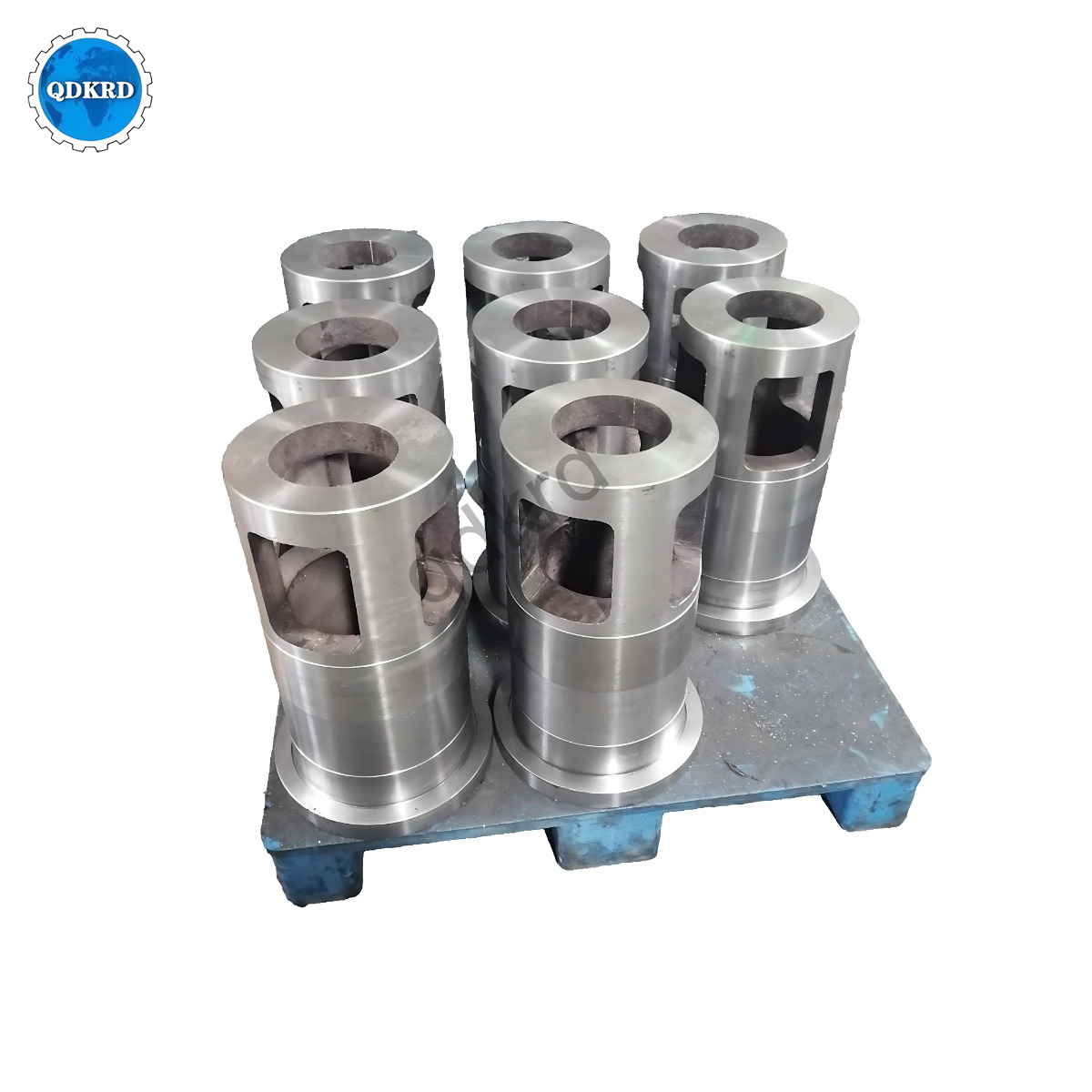

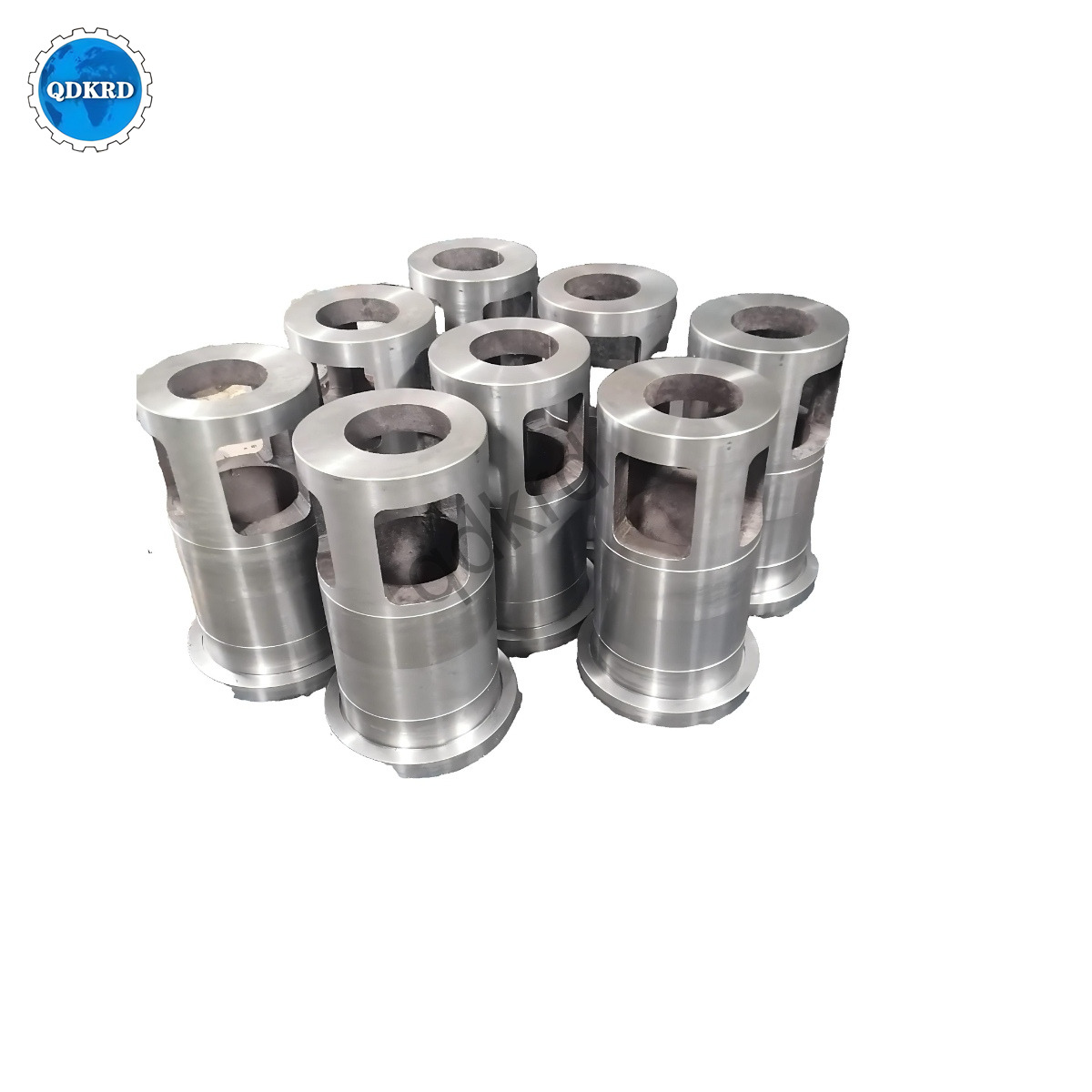

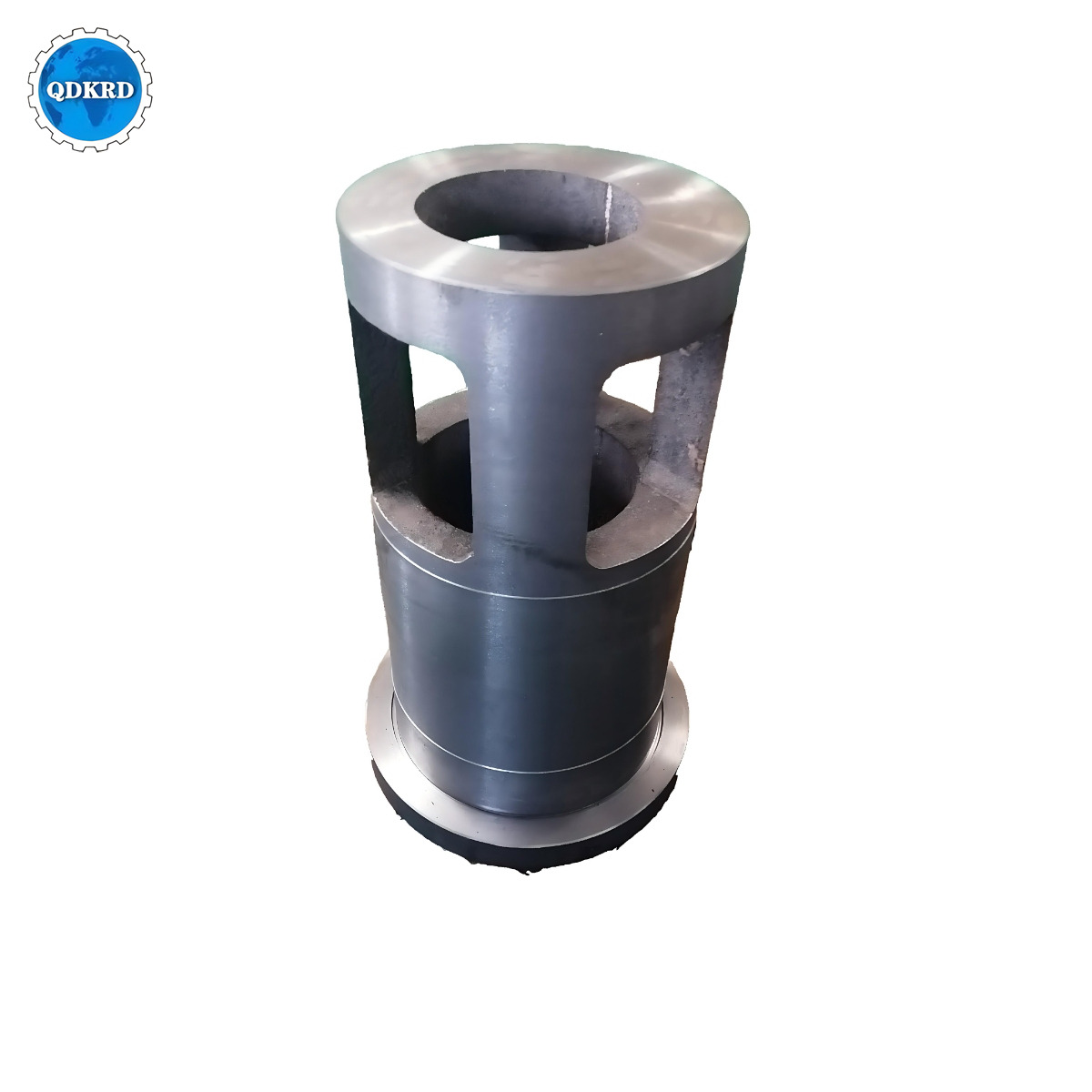

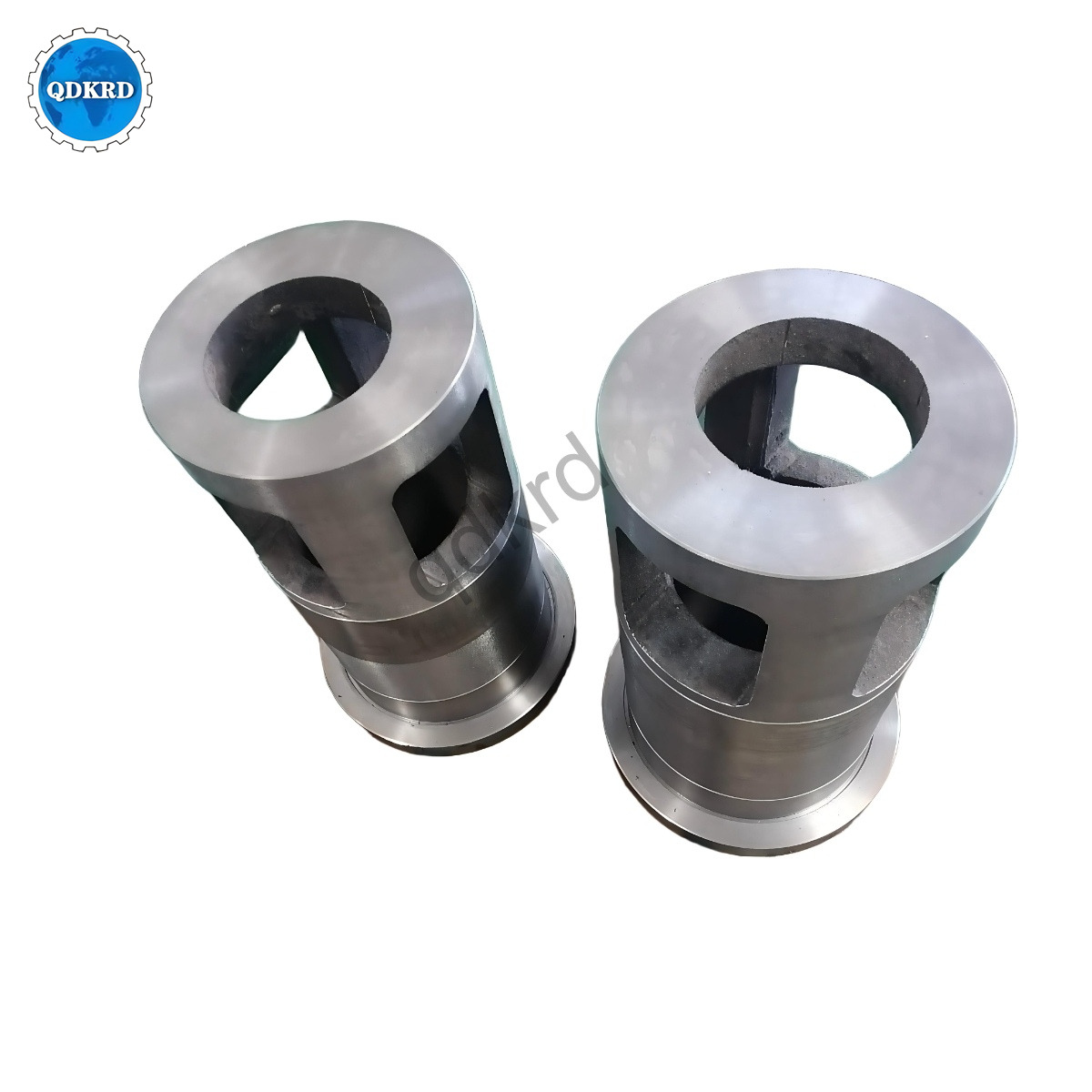

High Precision CNC Machined Eccentric Bushing for Cutting Chamber Frame

Product Advantage

1. High Precision CNC Machining & Tight Tolerance Control
This eccentric bushing is manufactured using advanced CNC machining technology, ensuring exceptional dimensional accuracy and consistency. Tight tolerance control allows precise adjustment within the cutting chamber frame, effectively reducing misalignment and vibration during operation. Each part undergoes strict quality inspection to guarantee reliability and interchangeability. This makes it an ideal choice for applications requiring high precision and stable performance.

2. Durable Material & Excellent Wear Resistance
Made from high-quality alloy steel or stainless steel, this eccentric bushing offers outstanding strength and durability under heavy-duty working conditions. The material provides excellent wear resistance and corrosion protection, extending the service life of both the bushing and the cutting chamber frame. It is well-suited for continuous operation environments where reliability is critical.

3. Adjustable Design for Accurate Alignment
The eccentric structure allows flexible adjustment of shaft position and component alignment within the cutting chamber frame assembly. This feature helps compensate for installation deviations and improves overall equipment performance. It enhances operational stability, reduces maintenance frequency, and ensures smoother mechanical movement.

4. Wide Application & Custom Manufacturing Support
This eccentric bushing is widely used in cutting chamber systems and other industrial machinery requiring precise positioning components. Customization is available based on drawings or specific requirements, including material selection, surface treatment, and dimensional specifications. It is an ideal solution for OEM and custom industrial applications.

Technical Parameters

Product Uses

1. Cutting Chamber Frame Assembly

This eccentric bushing is primarily used in cutting chamber frame systems to enable precise alignment and positioning of key structural components. By adjusting the relative position of shafts and mounting points, it helps maintain stability and accuracy during cutting operations. It is especially suitable for equipment that requires consistent performance under continuous or heavy-duty working conditions.

2. Industrial Cutting Equipment

In various cutting machines such as laser cutting, plasma cutting, or mechanical cutting systems, the eccentric bushing plays an important role in fine-tuning alignment. It helps reduce vibration, improve cutting precision, and ensure smooth operation. Its durability and wear resistance make it ideal for long-term use in demanding industrial environments.

3. Mechanical Transmission and Adjustment Systems

The eccentric bushing is widely applied in mechanical assemblies where adjustable positioning is required. It allows for controlled offset and alignment correction, making it useful in transmission systems, support structures, and linkage mechanisms. This improves overall equipment efficiency and reduces the need for frequent maintenance or manual adjustments.

4. Custom Industrial Machinery Applications

Thanks to its customizable design, this eccentric bushing can be adapted for use in a wide range of industrial machinery. It is suitable for OEM projects and specialized equipment where precise alignment and structural reliability are critical. Different materials, dimensions, and surface treatments can be selected to meet specific operational requirements.

Product Operate Guide

Before installation, ensure the eccentric bushing and mounting surfaces are clean and free of debris. Insert the bushing into the designated position of the cutting chamber frame, then rotate it to adjust alignment until the desired position is achieved. Secure it firmly with the appropriate fasteners and check that all connected components move smoothly without excessive clearance or resistance. After installation, perform a trial run to confirm stability and accuracy. Regularly inspect and lubricate if required to maintain optimal performance and extend service life.

Product Video

FAQ

1.Q: What is the function of an eccentric bushing?
An eccentric bushing is used to adjust alignment and compensate for positional deviations in mechanical assemblies. By rotating the bushing, users can fine-tune the position of shafts or components, ensuring better stability, reduced vibration, and improved overall performance in cutting chamber frame systems.

2.Q:  Can the eccentric bushing be customized?
Yes, the eccentric bushing can be fully customized based on your drawings or technical requirements. Material, dimensions, tolerance levels, and surface treatments can all be tailored to meet specific application needs, making it suitable for various industrial machinery and OEM projects.

3.Q:What materials are available for this product?
Common materials include alloy steel, stainless steel, and carbon steel. The selection depends on the working environment and performance requirements. For example, stainless steel offers better corrosion resistance, while alloy steel provides higher strength and wear resistance for heavy-duty applications.

4.Q: How do I ensure proper installation?
Proper installation involves cleaning all contact surfaces, correctly positioning the bushing, and rotating it to achieve the desired alignment. After adjustment, secure it firmly and check for smooth operation. A test run is recommended to confirm stability and accuracy before full operation.

5.Q:What is the typical service life of the eccentric bushing?
The service life depends on factors such as material, working conditions, and maintenance. With proper installation, regular inspection, and appropriate lubrication, the eccentric bushing can provide long-term, reliable performance even in demanding industrial environments.
