Hydraulic systems are unforgiving environments where performance hangs on a delicate balance of pressure, flow, and containment. A single compromised seal or a spool valve that deviates by just a few microns can lead to internal leakage, catastrophic pressure loss, and costly downtime. While the hydraulic schematic defines the logic of the system, the geometry of the physical components dictates its reality. In the past, manual machining struggled to consistently meet the demands of modern high-pressure applications running at 3000+ PSI.
Today, the industry has shifted. CNC Machining is no longer just a luxury for high-end aerospace components; it is a fundamental requirement for reliable hydraulic function. Advanced turning capabilities allow manufacturers to achieve the diametrical clearances and surface finishes necessary to maintain volumetric efficiency and manage thermal loads. This article explores how precision turning directly influences the longevity and power density of hydraulic equipment.
Leakage Control: How micron-level tolerances in CNC turned parts eliminate the primary causes of internal bypass and fluid loss.
Surface Texture: The critical relationship between specific Ra/Rz finish values and seal life.
Complex Geometries: The role of Swiss-style turning and Mill-Turn centers in producing multi-port hydraulic valves in a single setup.
ROI Impact: Why investing in higher precision machining reduces warranty claims and field maintenance costs.
Hydraulics is effectively the physics of fluid under pressure, and the machining process is what contains that physics. The most pervasive enemy of hydraulic efficiency is internal leakage, often referred to as "bypass." This occurs when high-pressure fluid escapes from the working chamber to the return line without doing work. The root cause is almost always a mismatch in the diametrical clearance between mating parts, such as a spool and its bore.
In high-performance valves, the gap between moving parts must be large enough to allow movement but small enough to block fluid. This is a contradictory requirement that demands extreme precision. Modern CNC machining solves this by holding tolerances as tight as ±0.0001" (2.5 microns). By achieving this level of consistency, manufacturers can maintain the necessary fluid film to prevent metal-to-metal contact while virtually eliminating the bypass path. This precision prevents "stick-slip" friction—the jerky motion caused when a valve sticks due to tight clearances or lack of lubrication—ensuring smooth, predictable control.
A common misconception is that hydraulic surfaces must be as smooth as possible. In reality, a surface that is too smooth (mirror finish) can wipe the metal dry of oil, causing seals to adhere and eventually tear. Conversely, a surface that is too rough acts like a file, shredding rubber and PTFE seals.
Advanced CNC turning strategies focus on engineered surface topography. Machinists aim for specific Ra (Roughness Average) and Rz (Mean Roughness Depth) values that support the seal. For dynamic applications, a cross-hatch pattern—often perfected by subsequent honing or roller burnishing—is ideal. This texture retains microscopic pockets of oil to lubricate the seal while providing a flat bearing surface for the seal lip to ride on. This balance significantly extends the mean time between failures (MTBF) for cylinders and actuators.
Heat is the byproduct of inefficiency. In hydraulic systems, turbulence generates heat. When fluid is forced through sharp, irregular corners inside a manifold or valve body, the flow turns turbulent, causing pressure drops and energy loss. CNC methods allow for the creation of precise internal radiuses and perfectly deburred ports. By smoothing the path of the fluid, these components promote laminar flow. The result is a system that runs cooler, protecting the chemical integrity of the hydraulic fluid and the lifespan of system seals.

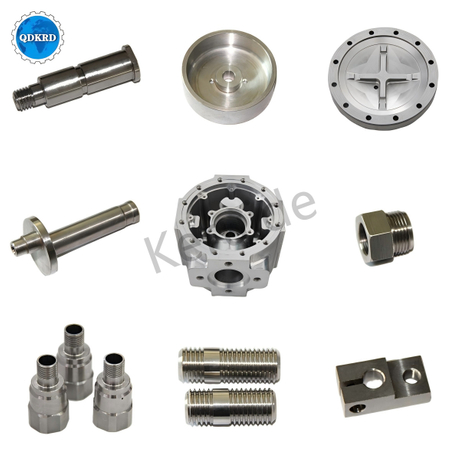

Not all hydraulic parts are created equal. Certain components act as the "heart" and "muscle" of the system, where the quality of machining defines performance.
The spool is arguably the most critical turned component in a hydraulic circuit. It slides back and forth millions of times, diverting fluid to different ports. The primary requirement here is extreme straightness and concentricity. If a spool is slightly bent or out of round, it will bind in the bore.
Manufacturers utilize Swiss-style CNC lathes for these long, slender parts. Swiss machines support the workpiece with a guide bushing close to the cutting tool, preventing deflection. This ensures that a 200mm long spool remains perfectly straight within microns, preventing the dreaded "hydraulic lockup."
The cylinder rod is the interface between the hydraulic system and the external load. It faces a dual challenge: it must seal high internal pressure while resisting external dirt and damage. Precision CNC Turned Parts for cylinders often undergo "hard turning" strategies. This involves machining hardened shafts (often chrome-plated) to achieve a consistent surface finish that safeguards the rod wiper and main seal. Inconsistent finishes here lead to rapid external leakage—the most visible and damaging type of hydraulic failure.
While often block-shaped, valve bodies rely heavily on precision boring and porting. The challenge is port alignment. A multi-axis CNC machine ensures that intersecting cross-holes align perfectly. A misalignment of even half a millimeter creates a "step" in the flow path, restricting flow (throttling) and causing cavitation—the formation of vapor bubbles that implode and erode the metal.
These connection points are the first line of defense against leaks. Thread quality is paramount. Whether using JIC, ORFS (O-Ring Face Seal), or NPT standards, the thread profile must be exact to ensure proper torque retention. For metal-to-metal sealing designs like poppets, the seating angle must be machined with high precision to ensure a leak-free closure every time the valve shuts.
The traditional method of manufacturing hydraulic parts involved moving a workpiece from a lathe (for turning) to a mill (for drilling cross-holes). This approach is obsolete for high-precision components due to the introduction of "stack-up errors." Every time a part is unclamped and re-fixtured, a small amount of accuracy is lost.
Mill-Turn centers have revolutionized hydraulic component manufacturing. These machines combine the capabilities of a lathe and a mill, allowing a raw metal bar to enter one end and a finished, complex valve body to exit the other. By removing secondary setups, manufacturers eliminate the risk of operator loading errors.
For a hydraulic shaft with cross-drilled oil ports, this ensures that the drilled holes are perfectly concentric to the axis of rotation. The "One-and-Done" approach guarantees that the relationship between features—such as the timing of ports opening as a spool slides—is exactly as the engineer designed it.
As industries like aerospace and robotics push for compact, lightweight systems, hydraulic components are shrinking. Producing a needle valve the size of a matchstick presents unique challenges. Standard lathes cannot turn long, thin parts without the metal bending away from the tool (deflection).
Swiss CNC machining is the solution. By feeding the stock through a guide bushing, the machine cuts the metal only millimeters away from the support. This allows for high-aspect-ratio turning—machining parts that are very long relative to their diameter. This technology is essential for producing the pilot spools and needle valves found in compact servo-hydraulics.
In high-volume production, thermal drift is a real concern. As a machine warms up, its metal structure expands slightly, which can shift cut dimensions. Modern CNC machines combat this with in-process probing. The machine can periodically measure the part it is cutting. If it detects a deviation, it automatically updates its tool offsets to compensate. This active feedback loop ensures that the first hydraulic piston produced on Monday morning is identical to the 10,000th one produced on Friday afternoon.
The choice of material dictates both the component's lifespan and the machining strategy required. Hydraulic environments are hostile, involving high pressures, abrasive contaminants, and corrosive fluids.
| Material Category | Typical Components | CNC Machining Challenges | Performance Benefit |
|---|---|---|---|
| Hardened Alloys & Tool Steels (50+ HRC) | Valve spools, seats, wear rings | Requires "Hard Turning" or grinding; rapid tool wear. | Extreme wear resistance; maintains sharp metering edges for millions of cycles. |
| Stainless Steel (304/316) | Marine fittings, washdown valves | Prone to work-hardening; requires rigid setups and sharp tooling. | Essential for corrosion resistance in offshore or food-processing hydraulics. |
| Free-Machining Brass | Low-pressure fittings, bodies | High-speed machining; easy to achieve excellent surface finishes. | Good corrosion resistance; material softness ensures good sealing on threads. |
| Engineered Plastics (PEEK, PTFE) | Back-up rings, soft seats | Thermal deformation; plastic can melt or deform if cut too fast. | Chemical compatibility; low friction; prevents extrusion of rubber O-rings. |
Components like spools often require hardness exceeding 50 HRC to resist erosion from high-velocity fluid. Machining these materials historically required expensive grinding processes. Today, advanced CNC machines use CBN (Cubic Boron Nitride) inserts to perform "Hard Turning." This process is faster than grinding and achieves comparable geometric accuracy, making high-performance durability more cost-effective.
For hydraulics operating in marine environments, stainless steel is non-negotiable. However, turning stainless steel requires careful management of work-hardening. If the tool dwells in one spot or makes a light cut, the material surface hardens instantly, causing thread failure or tool breakage. Experienced CNC partners utilize specific speeds and feeds to cut cleanly through the material, ensuring thread integrity on fittings.
Plastics are critical for back-up rings that prevent O-rings from extruding under pressure. Machining PEEK or PTFE requires incredibly sharp tooling and strict thermal management. If the material heats up during the cut, it expands. Once it cools, the part shrinks, resulting in an undersized component. Precision control here is vital to prevent seal blow-by.
For Original Equipment Manufacturers (OEMs), selecting a machining partner is as critical as selecting the material. A supplier must demonstrate more than just the ability to cut metal; they must understand hydraulic requirements.
Metrology Capabilities: Verify that the supplier uses Coordinate Measuring Machines (CMMs) and dedicated cylindricity measurement tools. Standard calipers are insufficient for verifying the roundness required for a hydraulic spool. Profilometers are also essential for verifying surface texture (Ra/Rz).
Post-Processing Integration: A turned part is rarely "finished" for hydraulics immediately after machining. Look for suppliers with integrated honing, grinding, or deburring capabilities. Electrochemical or thermal deburring is preferred for complex manifolds to ensure no loose chips remain inside internal passages.
Cleanliness Standards: Hydraulic systems are highly sensitive to contamination. Ask for particle count testing (ISO 4406 standards). A part that looks "visually clean" may still carry microscopic metallic dust that can jam a servo valve.
Capacity and Scalability: Consistency of supply is key. Partners utilizing lights-out manufacturing with automated bar feeders can ensure consistent throughput for high-volume contracts, insulating your supply chain from labor shortages.
When sourcing hydraulic components, the sticker price of a precision machined part is only one variable in the equation. A Total Cost of Ownership (TCO) analysis often reveals that higher precision yields significant long-term savings.
High-precision CNC turned parts may carry a higher unit cost than lower-grade alternatives due to the slower run times and stringent QC required. However, consider the cost of failure. A single warranty claim involving a field service technician, system drainage, and part replacement can cost thousands of dollars—dwarfing the cents saved on a cheaper component. Avoiding safety incidents caused by burst fittings or cylinder collapse is priceless.
Precision directly impacts the assembly floor. When parts are machined to a CpK > 1.33 (statistically capable), every part fits every time. This eliminates the need for "bin-matching" (measuring parts and pairing them manually) or hand-fitting components. Assembly technicians can simply grab a part and install it, significantly reducing cycle time and labor costs.
Finally, there is the operational ROI for the end-user. A hydraulic system built with tighter tolerance components has higher volumetric efficiency. It wastes less energy pumping fluid through internal leaks. Over the life of a machine, this translates to lower fuel consumption (for mobile hydraulics) or lower electricity bills (for industrial units), a compelling selling point for your equipment.
CNC machining is the backbone of modern, high-efficiency hydraulic systems. It transforms raw stock into the complex, precise geometries that define a system's power, safety, and lifespan. From the micron-level clearances in a spool valve to the robust threads of a high-pressure fitting, the quality of turning determines the quality of the hydraulics.
For OEMs, the choice of a machining partner is a strategic decision that impacts brand reputation and system performance. By prioritizing precision, surface finish, and cleanliness, manufacturers can build hydraulic systems that run cooler, last longer, and deliver superior value.
We encourage engineers and procurement teams to audit their current component specifications. Contact our engineering team to review your hydraulic component prints for manufacturability and cost optimization. Let us help you turn precision into performance.
A: Surface finish is a balancing act. If the surface is too rough, it acts like a file and shreds the seals, causing leakage. If it is too smooth, it wipes away the oil film needed for lubrication, causing the seal to stick and tear. CNC turning combined with honing creates a specific texture that retains oil while providing a smooth surface for the seal to glide against.
A: The main difference is how the part is supported. Standard CNC turning supports the part at the chuck. Swiss machining uses a guide bushing to support the part right next to the cutting tool. This is essential for long, slender hydraulic parts like spools and needles, as it prevents the metal from bending (deflecting) under the pressure of the cut.
A: Often, yes. "Hard Turning" on a CNC lathe can machine hardened steel to tolerances very close to grinding. However, for the internal bore of a cylinder, honing is still typically required after machining to create the final cross-hatch pattern necessary for proper oil retention and seal lubrication.
A: For internal wear parts like spools, hardened carbon steels or tool steels are best due to their durability. For external components or those exposed to water, Stainless Steel (304/316) or Brass are preferred for corrosion resistance. Engineered plastics like PEEK are used for backup rings and seats due to their resistance to extrusion.
