Product Advantage
1. High-Strength Material Selection
Made from premium alloy steel or aluminum alloy, enhanced by heat treatment to improve hardness and wear resistance, ensuring the mounting seat has excellent load-bearing capacity and long-term stability.
2. Precision Machining Process
Manufactured using CNC machining centers for high-precision production, guaranteeing critical fit dimensions and assembly accuracy, which ensures accurate ball screw positioning, reduces operational deviations, and minimizes mechanical vibrations.
3. Optimized Structural Design with Multi-Size Compatibility
Designed with a mechanically sound structure layout to enhance rigidity and resistance to deformation, effectively reducing deformation during machining and improving overall equipment performance. Compatible with various ball screw specifications and models, supporting quick installation and replacement to meet diverse machine tool and equipment requirements.
4. Excellent Vibration Resistance and Customization Support
Internal structure optimized to boost vibration resistance, ensuring stable ball screw operation under high-speed and heavy-load conditions, thereby extending equipment service life. Offers customized design and manufacturing services based on specific customer needs, flexibly accommodating special sizes, materials, and process requirements.
Technical Parameters
| Product Parameters | Content |

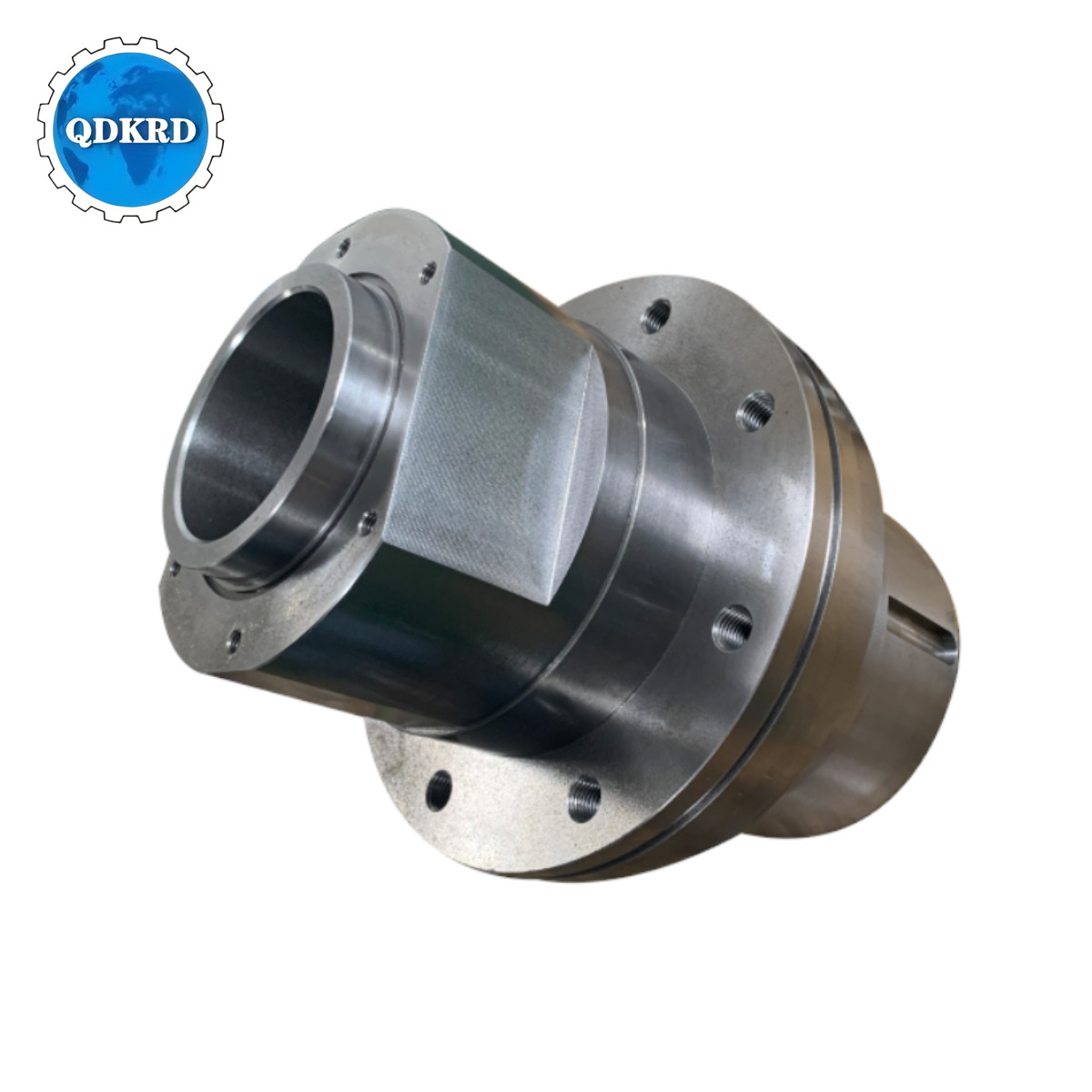

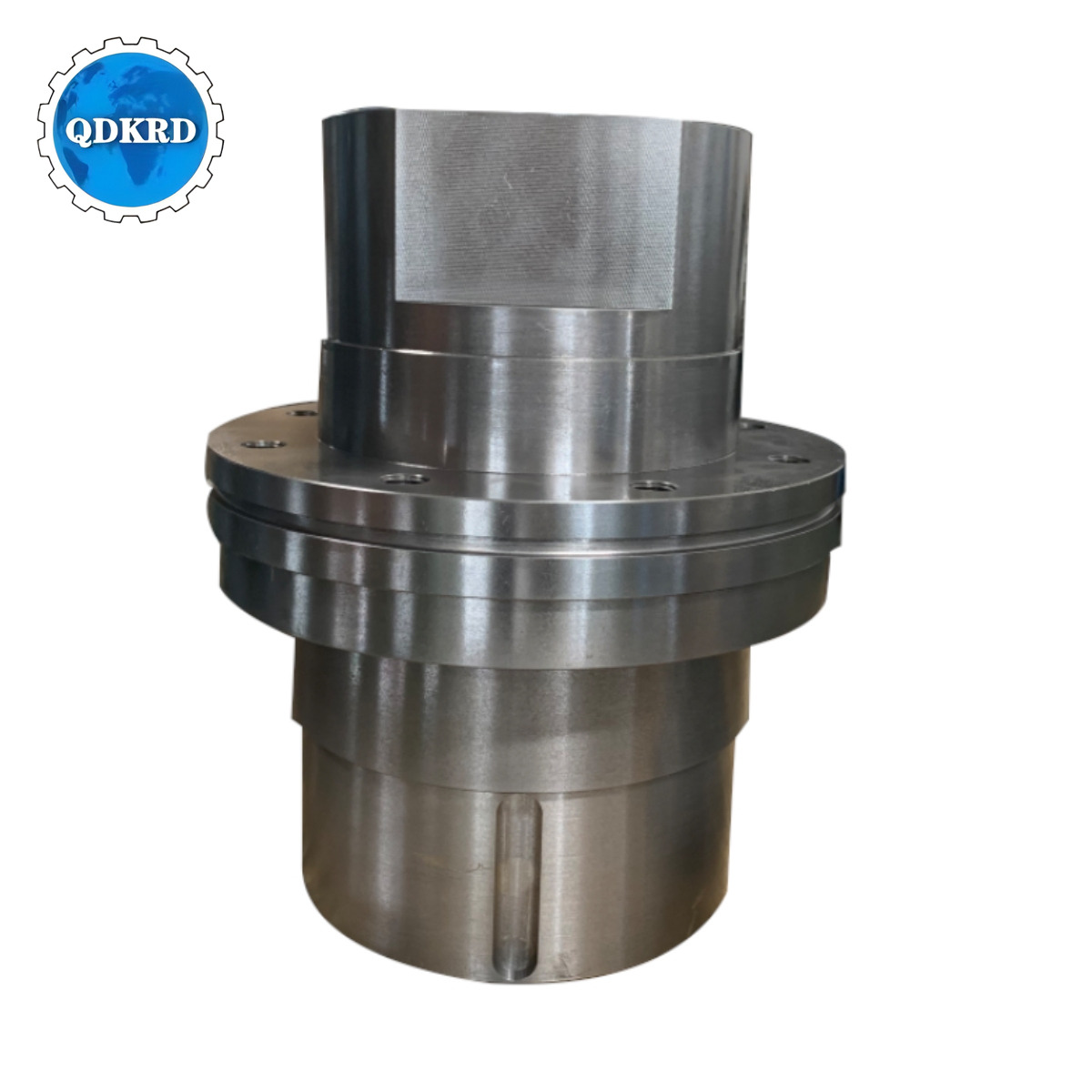

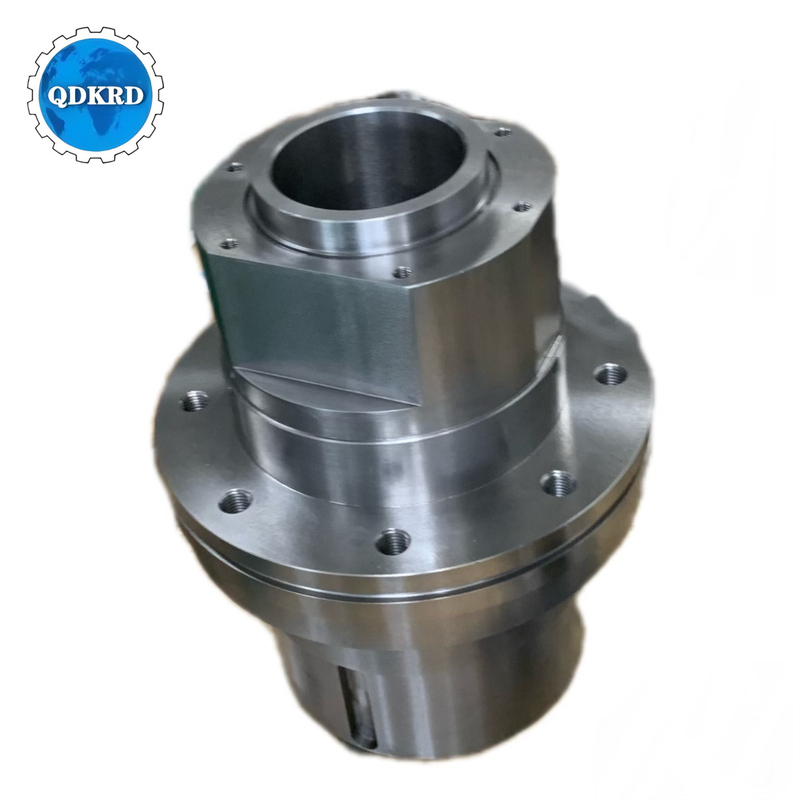

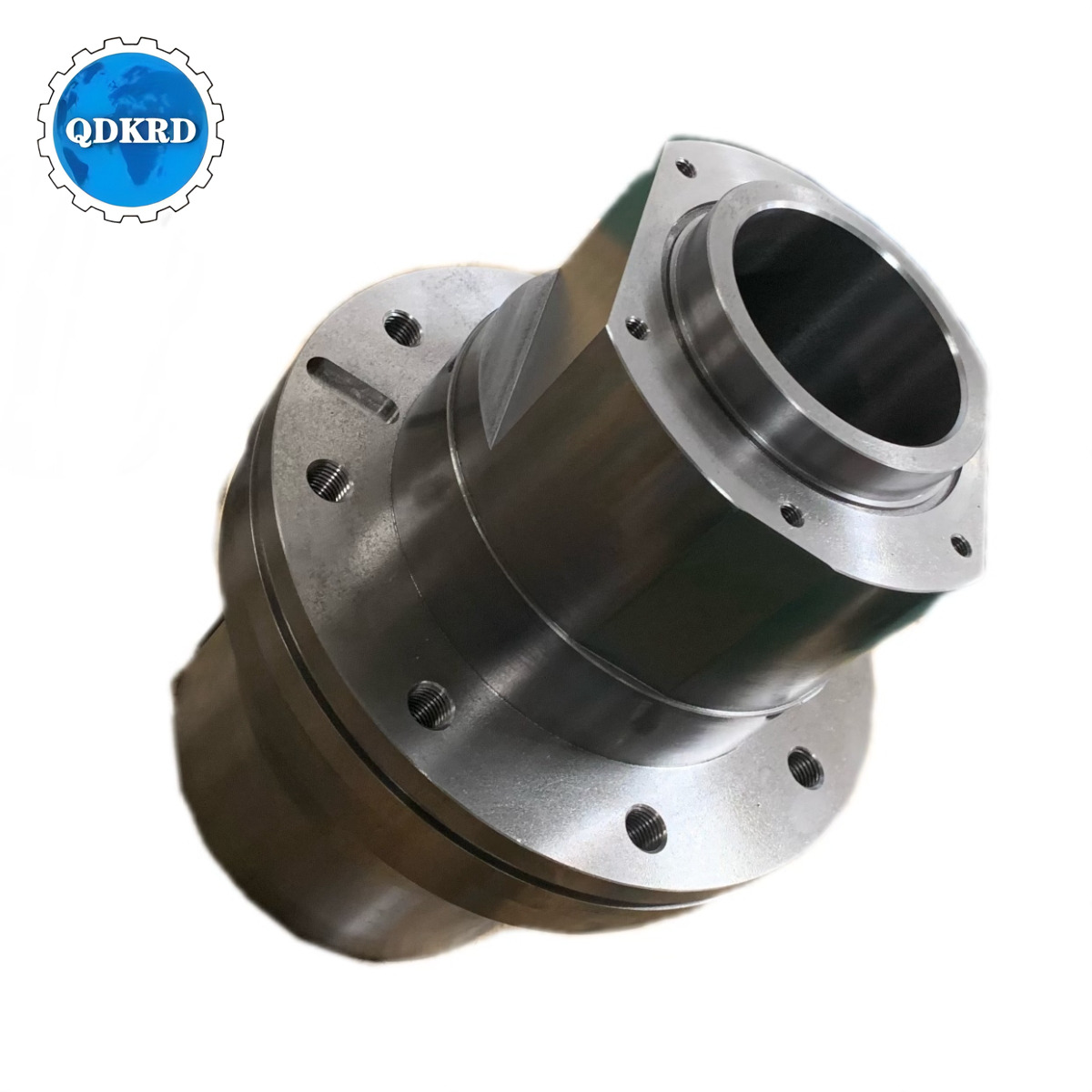

| Product Name | Ball Screw Mounting Seat |
| Application | Machine Tool Parts |
| Material | 42crmo4 |
| Surface Treatment | Chrome Plating |
| Weight | 5-30KG |
| Tolerance Class | IT:8-10 |
| Minimum Order Quantity | ≥5EA |
| Surface Roughness | RA:0.8-12.5 |
| Processing Technology | CNC |
| Production Volume | Over 150 Pieces Per Month |
| Heat Treatment | Quenching and Tempering |
| Hardness | HRC28-32 |
| Testing Method | CMM |
Product Uses
1. CNC Machine Tools
Ball screw mounting seats are used in CNC lathes, milling machines, and machining centers to support stable installation and precise guidance of the ball screw, ensuring high-precision positioning and repeatability of machining operations.
2. Automation Equipment
In automated production lines and robotic systems, the mounting seat provides reliable support for the drive screw, enabling efficient, stable linear motion and precise control.
3. Precision Instrument Manufacturing
Widely applied in precision measurement devices, medical equipment, and optical instruments to ensure smooth operation of the ball screw drive system, enhancing measurement accuracy and equipment reliability.
4. Heavy Machinery and Engineering Equipment
Supports heavy-duty ball screw drives in large machinery, improving load capacity and structural stability, suitable for harsh working conditions and high-intensity operations.
Product Operate Guide
Before installation, ensure the ball screw mounting seat’s model, size, and material match the machine tool. Position it accurately with a flat, tight fit to the machine. Align the ball screw and mounting seat coaxially to prevent radial deviation, using measuring tools if needed. Evenly tighten all bolts. Regularly lubricate the ball screw and mounting seat components per system requirements to maintain smooth operation. Periodically inspect the fastening and check for wear or deformation, addressing any issues promptly to ensure reliable performance.
Product Video
FAQ
1.Q: Do you offer customization services?
A：We support OEM/ODM services. Customers need to provide detailed 2D and 3D drawings including dimensions, materials, surface treatment, weight, quantity, and other specific information. We will provide a quote and custom manufacturing based on the requirements.
2.Q: What types and specifications of ball screws are compatible with your mounting seats?
A：Our ball screw mounting seats are widely compatible with various types and specifications of ball screws, suitable for different machine tools and equipment, meeting diverse installation needs.
3.Q: Do your products comply with relevant industry standards?
A：Our ball screw mounting seats are designed and manufactured strictly following mechanical manufacturing industry standards and are certified under quality management systems. Some products can also meet international standards such as ISO and DIN upon customer request, ensuring stable and reliable performance.
4.Q: What materials and manufacturing processes are used for the ball screw mounting seats?
A：The products are mainly made of high-strength aluminum alloy, cast iron, or steel. Advanced CNC machining and heat treatment processes are employed to ensure high precision and wear resistance. Surfaces are typically anodized or coated to enhance corrosion resistance and meet the demands of complex working conditions.
