Automotive packaging constraints are tighter than ever. As modern vehicles integrate advanced sensors like LiDAR and Radar alongside lighter, more compact drivetrains, the physical space available for mounting hardware has shrunk significantly. In this high-stakes environment, off-the-shelf components or simple bent metal brackets often fail to meet the necessary tolerance and rigidity requirements. Engineers frequently face a critical choice: stick with traditional stamped sheet metal or upgrade to a more robust manufacturing method.

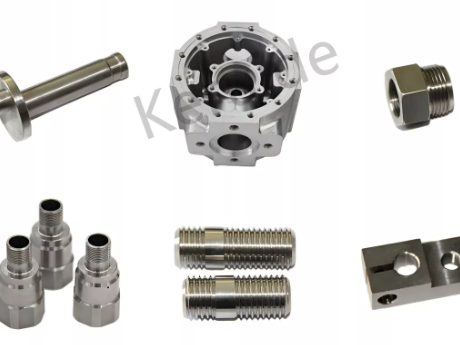

The problem with stamped sheet metal lies in its limitations. While cost-effective for high-volume production, stamping lacks the precision required for critical alignment or heavy-load dynamic applications, specifically regarding Noise, Vibration, and Harshness (NVH) control. When a bracket flexes under load, sensors drift and powertrains misalign. The solution for these complex, high-stress, or tight-tolerance applications is CNC Machining. This article evaluates when to switch from stamping to machining, technical material selection, and how to design for cost-efficiency.
Precision vs. Cost: CNC machining offers superior dimensional accuracy (±0.005mm) compared to stamping, essential for sensor alignment and drivetrain rigidity.
Material Versatility: Machining allows the use of solid block alloys (6061-T6, 7075, Titanium) that provide higher strength-to-weight ratios than bent sheet metal.
Development Speed: CNC eliminates the high upfront tooling costs of dies, making it the ideal choice for prototyping and low-to-mid volume luxury/performance production.
Design Freedom: Complex 3D geometries, variable wall thicknesses, and integrated fastening points are possible without the limitations of constant sheet gauge.
The decision to move away from sheet metal stamping is rarely driven by a single factor. Usually, it is a combination of geometric complexity, structural requirements, and the need for absolute precision. While stamping dies are efficient for producing millions of simple clips, they struggle to accommodate the nuanced engineering required in modern vehicle chassis and engine bays.
Automotive "real estate" is shrinking rapidly. As manufacturers pack more electronics and thermal management systems into the engine bay and undercarriage, mounting points are no longer located on convenient, flat planes. This creates a significant constraint for stamped parts.
Stamping is inherently limited to 2D bending operations. You start with a flat sheet and fold it. If your mounting points require complex 3D contouring to snake around an alternator or a suspension strut, stamping flanges often fail due to length restrictions or bend interference. CNC machining solves this by subtracting material from a solid block. It allows for true 3D contouring, enabling engineers to fit brackets into irregular voids that sheet metal simply cannot occupy.
Vehicle dynamics discussions often center on the balance between stiffness (for handling) and damping (for passenger comfort). Brackets play a pivotal role here. A bracket that flexes unintentionally acts as an undamped spring, introducing unpredictable vibrations into the chassis.
Machined solid blocks provide superior structural integrity compared to bent sheet metal. Stamped parts often suffer from "spring-back" and lower structural resonance frequencies, leading to the "flex" that compromises NVH performance. By utilizing Custom Machined Metal Brackets, engineers can ensure that engine mounts and suspension pickup points maintain accurate geometry under high dynamic loads, preventing the transmission of harsh vibrations to the cabin.
Precision is the hallmark of CNC processes. In stamping, tolerances fluctuate based on material batch hardness, die wear, and the variables of bending mechanics. A typical stamped tolerance might range from ±0.13mm to ±0.76mm depending on the feature.
For a cosmetic cover, this drift is acceptable. For a radar sensor that informs an autonomous braking system, it is not. CNC machining consistently holds tolerances as tight as ±0.005mm. This level of accuracy is non-negotiable for mating surfaces and sensor mounting points, where even a fraction of a degree in angular deviation can degrade system performance and compromise safety.
While standard stamped brackets suffice for holding wire harnesses or interior trim, machined components are deployed where failure is not an option. These applications demand high fatigue strength, thermal stability, and precise mass management.
Advanced Driver Assistance Systems (ADAS) rely on LiDAR, Radar, and high-definition cameras. These sensors require mounting solutions with zero deflection. If a bracket expands significantly due to heat or warps under vibration, the sensor's calibration drifts, potentially causing false positives in safety systems. Machined aluminum brackets offer the thermal stability and rigidity necessary to maintain sensor alignment throughout the vehicle's lifespan.
Connecting high-torque electric drivetrains or internal combustion engines to a chassis requires immense fatigue strength. A major advantage of machining is the ability to vary wall thickness. Using Finite Element Analysis (FEA), designers can optimize a machined bracket to be thick only where stress concentrations exist and thin elsewhere. This optimization reinforces high-stress areas without adding the "dead weight" associated with using a thicker gauge of sheet metal for the entire part.
In suspension design, unsprung weight is the enemy of handling. Heavy steel brackets attached to the wheel hub or control arms make the suspension sluggish. By switching to machined Aluminum 7075, engineers can achieve strength comparable to steel but at a fraction of the weight. This is particularly common for custom brake caliper mounts and control arm brackets in performance and luxury vehicles.
Electric vehicles present new challenges, particularly regarding the weight of battery modules and the need for electrical grounding. Custom machined metal brackets are frequently used to secure heavy battery packs. Beyond structural support, these brackets often feature integrated heatsink fins—a geometry impossible to stamp—to assist in thermal management while ensuring electrical grounding integrity.
Choosing the right alloy is as critical as the geometry itself. CNC machining opens the door to materials that are difficult or impossible to form via stamping. Below is a breakdown of the most common alloys used in automotive mounting.
This is the workhorse of the machining world. It offers an excellent strength-to-weight ratio and high corrosion resistance. Because it is highly machinable, it keeps cycle times low, reducing part cost. It is best suited for general-purpose mounting, electronic enclosures, and sensor brackets where extreme fatigue stress is not the primary concern.
When aluminum needs to perform like steel, engineers choose 7075. Its fatigue strength is comparable to many structural steels, making it ideal for high-stress cyclic loading applications like suspension mounts and engine brackets. However, it comes with a higher raw material cost and is generally more difficult to anodize consistently compared to 6061.
For environments exposed to extreme heat or road salts, such as exhaust hangers or turbocharger brackets, stainless steel or titanium is required. These materials offer superior chemical durability and heat resistance. The trade-off is manufacturing cost; they significantly increase machining time and accelerate tool wear.
The following table provides a quick comparison to aid in decision-making:
| Material | Cost Efficiency | Machinability | Strength-to-Weight | Corrosion Resistance |
|---|---|---|---|---|
| Aluminum 6061-T6 | High | Excellent | Good | Very Good |
| Aluminum 7075-T6 | Medium | Good | Excellent | Fair |
| Stainless Steel 304 | Medium | Fair | Medium | Excellent |
| Titanium (Ti-6Al-4V) | Low | Poor | Superior | Superior |
Moving from stamping to machining requires a shift in design thinking. While CNC offers freedom, certain geometries can drive up costs unnecessarily. Applying DFM principles ensures you get the precision you need without paying for features you don't.
Machining removes material, and as walls get thinner, they become less stable. A good rule of thumb is to avoid thin walls under 1mm. Thin walls tend to vibrate or "chatter" under the cutter, leading to poor surface finishes and dimensional inaccuracies. Furthermore, consider the depth of your pockets. Keep cavity depth-to-width ratios under 3:1. Deeper cavities require long-reach tools, which are prone to deflection and breakage, slowing down the machine and increasing cost.
One of the most common mistakes in converting a design to CNC is leaving square internal corners. A rotating round cutter cannot create a perfectly square internal corner. To achieve one requires expensive Electrical Discharge Machining (EDM). To optimize for cost, design internal corners with radii larger than the cutter radius. For example, if using a 5mm end mill, design a 3mm radius. This allows the tool to follow a continuous path without stopping, preventing dwell marks and reducing cycle time.
Engineers often over-specify thread depths in an attempt to maximize strength. However, engineering data shows that thread depth beyond 2.5x the diameter adds no significant pull-out strength. It only increases the risk of tap breakage and manufacturing time. Additionally, sticking to standard thread sizes avoids the need for custom tooling.
Surface finish is both functional and aesthetic. For grounding brackets, a Chemical Conversion Coating (Chem-film) is ideal as it maintains electrical conductivity while providing corrosion protection. For parts exposed to the elements, Type II or Type III Anodizing offers a hard, non-conductive, corrosion-resistant shell. Powder coating is another option for extreme durability, though it adds significant thickness that must be accounted for in tolerance stacks.
Selecting a manufacturing partner is as important as the design itself. Automotive supply chains demand rigorous quality control and traceability.
When sourcing precision brackets, verify the supplier's metrology capabilities. Do they have a CMM (Coordinate Measuring Machine)? Can they provide detailed reports for critical dimensions? First Article Inspection (FAI) verification is standard procedure. While ISO 9001 is the baseline requirement, a partner with awareness of IATF 16949 standards demonstrates a deeper understanding of automotive quality expectations.
The ideal partner can bridge the gap between development and production. They should handle rapid prototyping (1-10 units) with quick turnarounds and scale to mid-volume (1,000+ units) seamlessly. Look for shops utilizing palletized machining or multi-axis setups to reduce setup times for larger batches. Crucially, ensure they provide full material certification (mill test reports) to verify alloy authenticity, which is vital for safety-critical components.
A true partner does more than just machine to the print. They engage in value engineering. Does the shop offer feedback on tolerance relaxation to save costs without impacting function? Experienced machinists can often spot features that are "nice to have" but expensive to make, suggesting alternatives that preserve the bracket's functionality while lowering the unit price.
While stamped brackets retain their dominance in high-volume, low-stress applications, custom machined metal brackets have become indispensable for solving modern automotive challenges. The demand for high precision, superior rigidity, and rapid iteration in EV and ADAS development makes CNC machining the superior choice for critical mounting solutions.
The decision to pivot to machining is often justified by the total cost of ownership. The higher unit cost of a machined part is frequently offset by the elimination of hard tooling costs, improved vehicle performance, and a reduction in assembly line failures caused by misalignment. Engineers are encouraged to submit their CAD files for a DFM review early in the design process to optimize their mounting solutions for both peak performance and manufacturing efficiency.
A: You should choose CNC machining when your application involves low-to-mid production volumes, requires complex 3D geometries that stamping cannot achieve, or demands material thickness greater than 6mm. Furthermore, if your tolerance requirements are tighter than ±0.1mm—critical for sensor alignment or drivetrain rigidity—machining is the necessary choice over stamping.
A: Prototypes can typically be delivered in 3 to 10 days, depending on the complexity of the geometry and the required surface finishing. This is significantly faster than stamping, which often requires weeks or months for the design and fabrication of expensive dies and tooling.
A: Yes. Machining a bracket from a solid block eliminates the failure points, warping, and heat-affected zones associated with welding multiple pieces together. This results in a single, stronger component with superior dimensional accuracy and structural integrity.
A: The "as-machined" finish is the most cost-effective option. If light deburring or uniform texture is needed, bead blasting is the next most affordable step. For a balance of moderate cost and corrosion protection, Clear Anodizing or Chem-film (Chromate conversion) are the industry standards.
