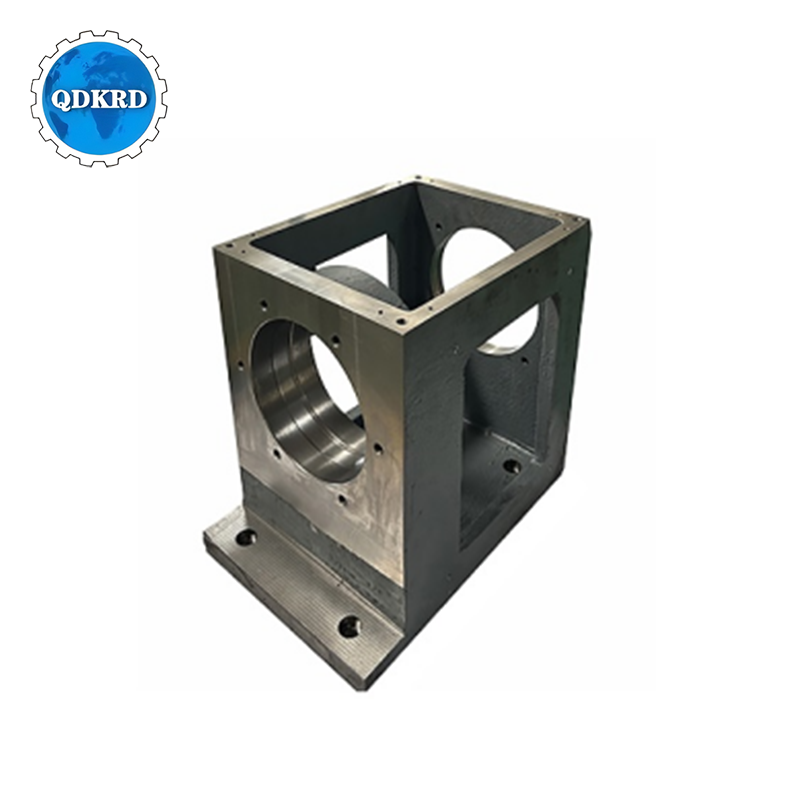

Core Advantages of Precision Metal Casting Motor Bearing Housing
1. Premium HT250 Gray Cast Iron Material
The foundation of this motor bearing housing lies in the utilization of premium HT250 gray cast iron. This specific grade of iron is renowned for its exceptional casting characteristics and dense structural integrity, making it the optimal choice for medium to heavy-load industrial environments. By leveraging the inherent vibration-damping properties of HT250, the housing significantly minimizes operational noise and absorbs mechanical impact during high-speed rotation. This directly translates to extended operational longevity for both the internal motors and bearings. Industrial facilities utilizing these components report a noticeable reduction in routine maintenance frequency and unexpected downtime, ultimately delivering a superior return on investment through sustained, uninterrupted production cycles.
2. End-to-End Precision Investment Casting Workflow
Our manufacturing workflow integrates advanced investment casting techniques with state-of-the-art CNC machining to deliver unparalleled precision. The process begins with meticulous CAD drawing analysis, followed by precision casting and critical stress relief annealing to eliminate internal material stresses. This end-to-end standardized procedure ensures absolute batch consistency even for large-scale orders. By achieving highly accurate dimensional tolerances, we minimize mechanical assembly clearances and ensure precise spindle positioning. This meticulous system alignment effectively reduces internal component wear over time, directly enhancing the overall safety, operational stability, and efficiency of heavy machinery transmission systems.
3. Custom Engineering and CAD Integration
As an experienced original equipment manufacturer specializing in iron casting, we provide comprehensive custom production services tailored to your exact specifications. By thoroughly analyzing your custom two-dimensional or three-dimensional drawings, our engineering team develops optimized manufacturing strategies for various motor shaft housings and enclosures. This customized approach allows us to meet highly specific structural requirements across diverse industrial sectors, ensuring that every cast enclosure perfectly integrates into your existing mechanical infrastructure, regardless of the unique operating conditions or environmental challenges present at your facility.
4. Rigorous Quality Control and Surface Protection
To guarantee the highest level of performance, our production facility implements a rigorous quality control and inspection system at multiple critical nodes. Utilizing advanced coordinate measuring machines and sophisticated vision measurement systems, we conduct comprehensive evaluations of dimensional accuracy, surface roughness, and material mechanical properties. This strict oversight ensures full compliance with IT:6 high-precision tolerance standards. Furthermore, our surface treatment capabilities extend beyond basic precision polishing to include professional anti-rust oil application and customized industrial painting. This comprehensive protection ensures the cast iron enclosures maintain long-lasting corrosion resistance, particularly in harsh environments like mining and metallurgy.
5. Secure Packaging and Global Logistics Support
Understanding the logistical challenges associated with heavy metal components weighing between 20 to 100 kilograms, we provide specialized packaging solutions to protect your investment. Each precision motor bearing housing is secured within high-strength, fumigation-free wooden crates designed specifically for international transit. Our custom anti-collision fixing methods prevent any internal movement or impact damage during transportation. This meticulous attention to packaging ensures zero-damage delivery across global ocean and air freight networks, allowing the components to arrive at your facility in pristine condition and ready for immediate assembly.
Technical Specifications of HT250 Motor Bearing Housing
The following technical specifications detail the precise manufacturing parameters and material properties of our OEM motor bearing housing. Engineered from robust HT250 gray cast iron, these housings are designed to meet the rigorous structural demands of the photovoltaic industry and other heavy-duty machinery sectors. With a guaranteed tolerance class of IT:6 and a carefully controlled surface roughness ranging from RA:1.6 to 12.5, every unit undergoes meticulous CNC processing and stress relief annealing. Our comprehensive inspection methods, including coordinate measuring machines and advanced vision systems, ensure that each housing strictly adheres to these documented standards, providing reliable and safe performance for your critical mechanical transmission systems.
| Product Parameters | Content |
| Product Name | Motor Bearing Housing |
| Application | Photovoltaic Industry |
| Material | HT250 |
| Surface Treatment | Polishing |
| Weight | 20-100KG |
| Tolerance Class | IT:6 |
| Minimum Order Quantity | ≥5EA |
| Surface Roughness | RA:1.6-12.5 |
| Processing Technology | CNC |
| Production Volume | Over 30 Pieces Per Month |
| Heat Treatment | Stress Relief Annealing |
| Inspection Methods | CMM / Vision Measuring System / Contour Measuring Instrument |
Industrial Applications for Precision Metal Casting Housing
1. Industrial Motors and Gear Reducer Systems
In complex industrial motor networks and heavy-duty gear reducer configurations, this precision-cast housing acts as the primary foundational support for the main shaft. It ensures exact positioning and provides a highly effective protective sealing environment for internal bearings. By maintaining structural integrity under continuous, high-load operations, the housing significantly enhances the overall stability and operational lifespan of the entire transmission system.
2. CNC Machine Tools and Automation Equipment
For high-precision machine tools and fully automated production lines, maintaining exact alignment is critical for product quality. The motor shaft housing serves as an indispensable component of the drive system, enabling the highly accurate transmission of mechanical power from the motor. Its rigid construction supports high-speed rotation and precise spatial positioning, fulfilling the strict demands of modern precision machining environments.
3. Mining, Metallurgy, and Conveyor Equipment
Heavy-duty sectors such as mining extraction, metallurgical processing, and bulk material conveying require equipment that can withstand extreme operational punishment. The motor shaft housing delivers exceptional compressive strength and superior wear resistance to meet these challenges. Enhanced by customized anti-rust and industrial painting treatments, these HT250 gray cast iron housings easily withstand severe impact forces, elevated thermal conditions, and highly abrasive, dusty environments, guaranteeing uninterrupted operation.
4. Wind Power and Energy Equipment
Within the renewable energy sector, particularly in wind turbine installations and related energy generation equipment, the structural integrity of the main shaft support is paramount. The precision motor housing provides an incredibly stable foundation designed to endure high-intensity, continuous operation while resisting the degrading effects of extreme weather fluctuations, thereby playing a vital role in maintaining the reliability and output of clean energy infrastructures.
Installation and Operation Guide for CNC Motor Housing
Proper installation and ongoing maintenance are crucial for maximizing the operational lifespan of the precision metal casting motor bearing housing. Prior to initiating the assembly process, technicians must thoroughly inspect all mating surfaces to ensure they are completely clean, degreased, and free from any microscopic burrs or particulate contaminants. It is essential to verify that all dimensional tolerances strictly conform to the precise assembly requirements of both the internal bearing and the main spindle. During the physical assembly phase, personnel must utilize dedicated pressing tools and fixtures; utilizing improper methods such as direct hammering or forced press-fitting is strictly prohibited, as this can cause irreversible structural deformation or compromise the critical IT:6 tolerance alignment. Following a successful installation, the housing interior must be filled with the manufacturer-specified grade and volume of industrial lubricant to guarantee optimal bearing lubrication and thermal dissipation. Once the mechanical system is operational, maintenance teams should establish a routine monitoring schedule to evaluate temperature fluctuations, structural vibration levels, and the integrity of the shaft housing seals. Operating the equipment under conditions of insufficient lubrication or mechanical overload will severely degrade the components and is strictly forbidden. Adhering to these guidelines ensures the entire motor transmission system operates with maximum reliability and safety.
Manufacturing Process Video of Iron Casting Housing
To provide complete transparency into our manufacturing capabilities, the following video demonstrates the comprehensive production workflow of our precision metal casting motor bearing housing. Viewers can observe the meticulous stages of our operation, starting from the initial investment casting process through to the advanced CNC machining phases. The footage highlights our commitment to maintaining strict dimensional accuracy and exceptional surface finish quality at every step. By showcasing our state-of-the-art facilities and rigorous quality control protocols, including the use of coordinate measuring machines, we aim to illustrate the technical expertise and standardized procedures that guarantee the reliability and batch consistency of every heavy-duty component we produce. We invite you to watch the process that transforms raw HT250 gray cast iron into a highly engineered industrial solution.
Frequently Asked Questions about OEM Motor Bearing Housing
1. Q: Is custom machining available for the motor shaft housing?
A: Yes, our engineering facility fully supports extensive customization based on the detailed 2D and 3D CAD drawings provided by your technical team. We meticulously analyze your specific requirements regarding component weight, material grades like HT250, complex process requirements, and production volume. By leveraging our end-to-end investment precision casting and advanced CNC machining services, we can engineer custom enclosures that perfectly match your exact dimensional specifications and withstand your specific operational conditions.
2. Q: What is the typical lead time? Are samples available?
A: The standard production lead time for customized iron casting products is typically around 30 working days, though this timeline may vary depending on the structural complexity and specific surface treatment requirements of your order. We prioritize transparent communication throughout the manufacturing cycle. Furthermore, we highly encourage the production of initial samples or small trial batches. This allows your engineering team to conduct rigorous physical testing and verify batch consistency before committing to large-scale, high-volume production runs.
3. Q: What quality certifications do your products have?
A: Our manufacturing operations and finished products are strictly certified under several authoritative international quality standards, prominently including the ISO 9001 Quality Management System. This certification ensures a highly standardized production process, from raw material sourcing to final inspection, guaranteeing unwavering product quality across all batches. Additionally, we are fully equipped to provide CE certifications and other relevant compliance documentation upon request, ensuring our heavy-duty motor housings meet the stringent market access requirements and safety regulations of your specific geographic region.
