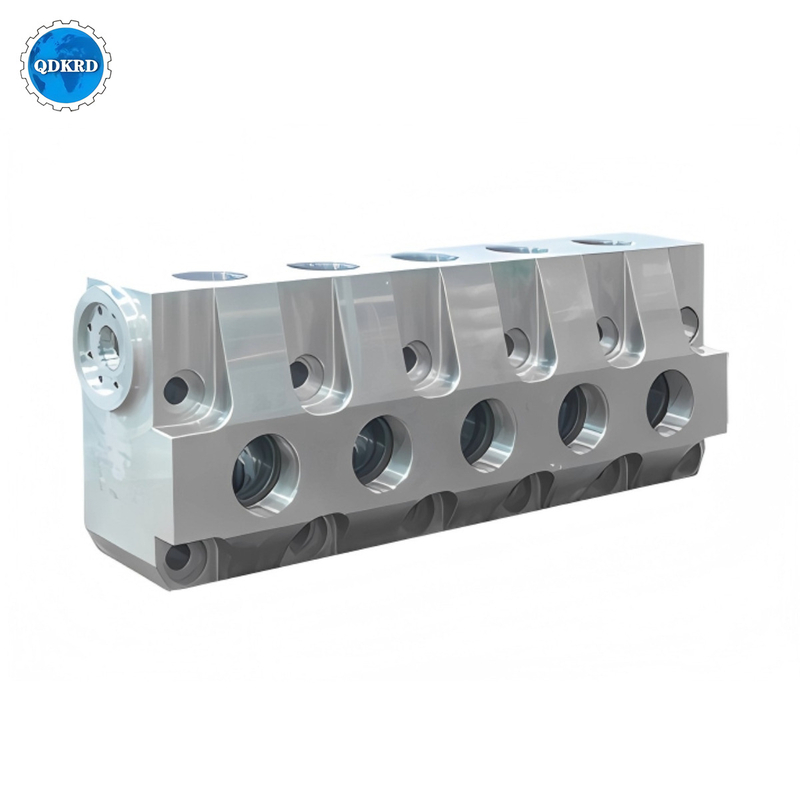

Our Custom Alloy Steel Fluid End Assembly is manufactured from premium forged alloy steel to withstand extreme working pressures and harsh oilfield environments. Advanced heat treatment improves hardness, wear resistance, and fatigue strength, ensuring reliable performance during continuous fracturing operations. Every Fracturing Fluid End Assembly is produced for long service life and reduced maintenance costs.
Each OEM Fluid End Assembly is machined on advanced CNC machining centers with strict dimensional control. Our factory operates more than 50 CNC machining centers and follows a comprehensive quality management system to achieve excellent accuracy, surface finish, and component consistency. Tight tolerances ensure reliable sealing performance and easy installation.
The High Pressure Fluid End Assembly is engineered to handle demanding hydraulic fracturing applications. Optimized internal flow passages reduce pressure loss and improve pumping efficiency, while high-strength sealing surfaces help minimize leakage and extend service life under continuous heavy-duty operation.
We provide complete OEM and ODM manufacturing services for Alloy Steel Fluid End Assembly products based on customer drawings or samples. Material selection, dimensions, surface treatment, pressure ratings, and connection types can all be customized to meet different pump models and operating conditions in the oil and gas industry.
Every Fluid End Assembly undergoes comprehensive dimensional inspection before shipment. Our manufacturing process complies with the ISO 9001 quality management system, ensuring stable product quality and consistent performance. Supported by experienced engineers and efficient production management, we deliver reliable machining solutions with competitive lead times for global customers.
| Product Parameters | Content |
| Product Name | Frac Pump Fluid End Series |
| Application | Hydraulic Fracturing Equipment |
| Material | 4330V, 4145H Alloy Steel or Equivalent |
| Manufacturing Process | Forging, Heat Treatment, CNC Machining |
| Structure Type | Integrated Forged Fluid End |
| Available Configurations | 3+2 Fluid End, Quintuplex Fluid End |
| Machining Accuracy | Precision CNC Machining |
| Inspection Standard | UT, MT, Dimensional Inspection |
| Certification | ISO 9001 Compliant Manufacturing |
| Industry Application | Oil & Gas, Hydraulic Fracturing, Well Stimulation |
| Working Pressure | Up to 137.9 MPa |
| Available Configurations | Triplex, 3+2, Quintuplex Fluid End |
| Stroke Length | 203.2 mm (8") |
| Plunger Diameter Range | 88.9–127 mm |
| Flow Rate Range | Up to 4247 L/min |
| Product Type | Fracturing Pump Fluid End |
Our Custom Alloy Steel Fracturing Fluid End Assembly is primarily used in hydraulic fracturing pumps for oil and gas exploration. It withstands high-pressure working conditions while delivering fracturing fluid efficiently and consistently. Manufactured from high-strength alloy steel, it provides excellent sealing performance, wear resistance, and long-term reliability, helping reduce maintenance frequency and improve overall pumping efficiency.
This Fluid End Assembly is widely applied in high-pressure pump systems used for drilling, well stimulation, cementing, and other oilfield operations. Precision CNC machining ensures accurate dimensions and dependable sealing, while the durable alloy steel construction enables stable performance under continuous heavy-duty service in harsh operating environments.
Our OEM Fluid End Assembly is suitable for both original equipment manufacturing and replacement applications. We offer customized solutions based on customer drawings or samples, including different materials, dimensions, and connection designs. It is an ideal choice for pump manufacturers, oilfield service companies, and maintenance providers seeking high-quality, precision-machined fluid end components.
To achieve optimal performance and service life, the fluid end should be inspected regularly for signs of wear, corrosion, or seal degradation. Before operation, verify that all fasteners, valves, and sealing components are properly installed and secured. Monitor operating pressure and fluid conditions to avoid excessive stress on critical components. Routine maintenance and timely replacement of wear parts can help reduce downtime, improve operational reliability, and ensure long-term performance in demanding oilfield applications.
Q1. What materials are available for your Fluid End Assembly?
A: Our Fluid End Assembly is typically manufactured from high-quality forged alloy steel for superior strength and wear resistance. We can also produce components using other materials according to customer requirements, application conditions, and technical drawings.
Q2. Can you manufacture according to our drawings or samples?
A: Yes. We provide professional OEM and ODM services for Fracturing Fluid End Assembly products. Our engineering team can manufacture parts based on your drawings, samples, or technical specifications while ensuring high precision and consistent quality.
Q3. How do you ensure product quality?
A: Every OEM Fluid End Assembly is produced under an ISO 9001 quality management system. We perform material verification, dimensional inspection, CNC machining control, and final quality checks before shipment to ensure reliable performance and long service life.
Q4. Which industries are your products suitable for?
A: Our High Pressure Fluid End Assembly is widely used in oil and gas exploration, hydraulic fracturing, drilling equipment, well stimulation systems, and other industrial high-pressure pumping applications requiring excellent durability and sealing performance.
Q5. Do you offer customized solutions and international shipping?
A: Yes. We offer customized manufacturing for different pump models, dimensions, and technical requirements. We also support international shipments and provide professional export services, including secure packaging and complete documentation for customers worldwide.
